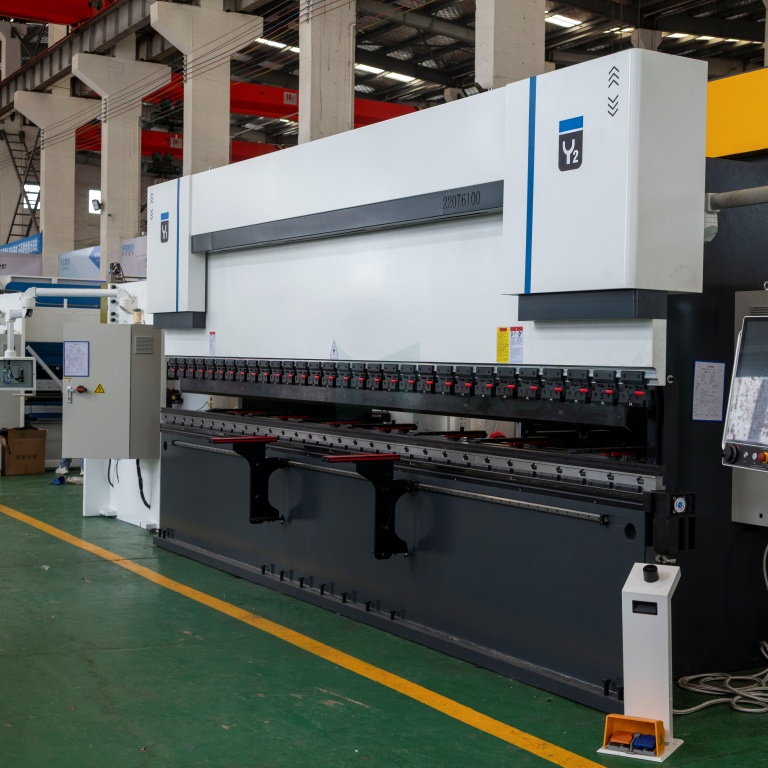

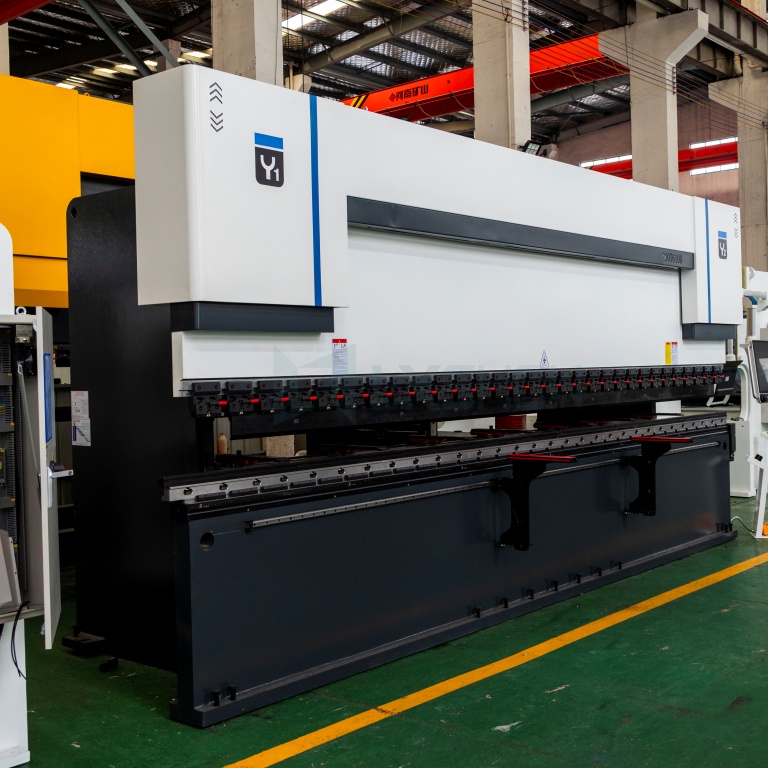

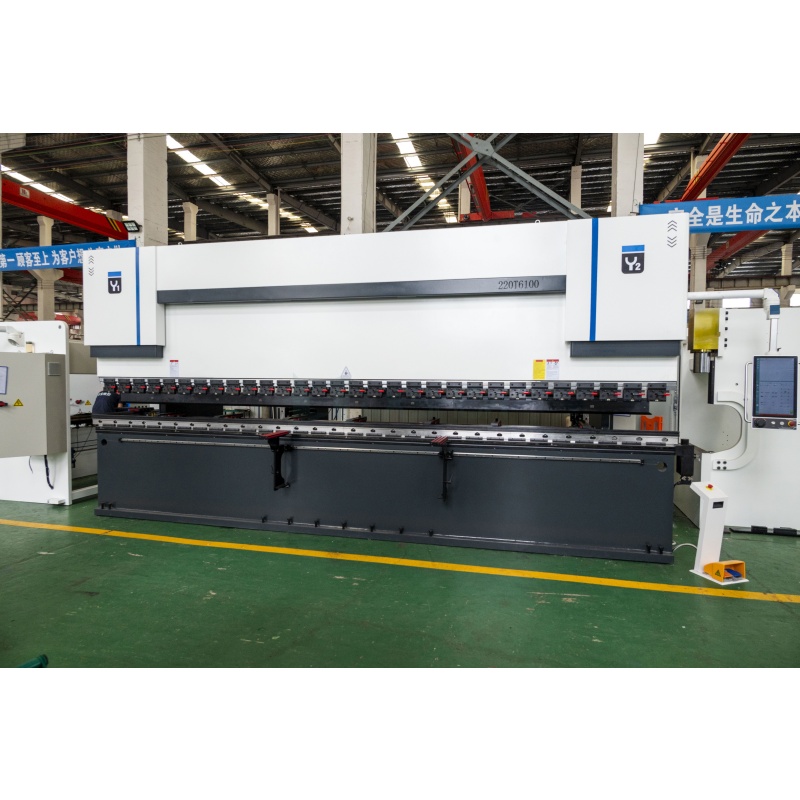

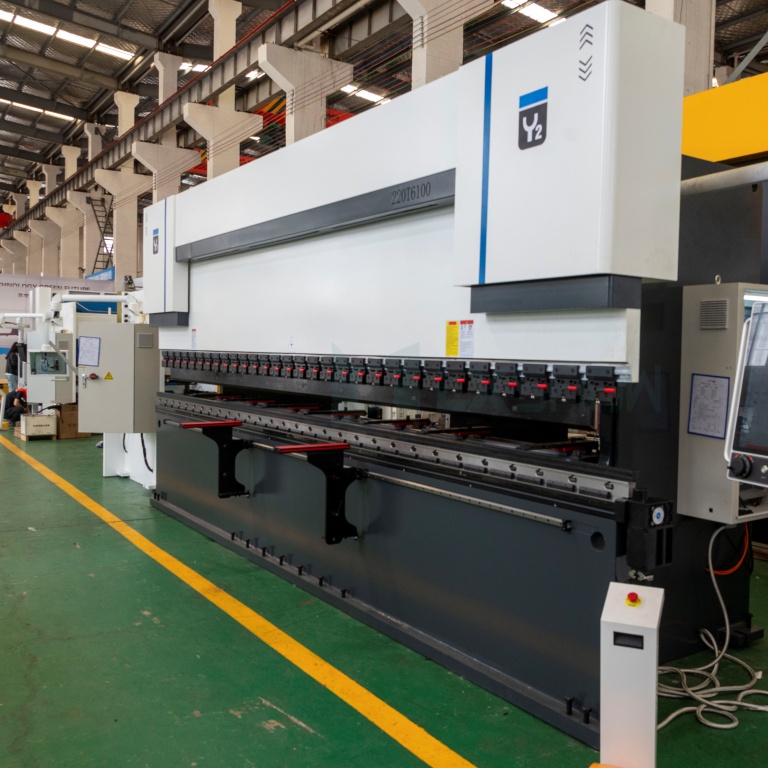

Custom WE67K-220T6100 Lxshow High Performance Customized Bending Machine for Sheet Metal Suppliers, Exporters

1 / 4

Custom WE67K-220T6100 Lxshow High Performance Customized Bending Machine for Sheet Metal Suppliers, Exporters

Send Inquiry

Product Description

Key Features

Complete steel-welded structure, with sufficient strength and rigidity.
Hydraulic down-stroke structure, reliable and smooth.
Mechanical stop unit, synchronous torque, and high precision.
The backgauge adopts the backgauge mechanism of the T-type screw with smooth rod, which is driven by a motor.
Upper tool with tension compensating mechanism, in order to guarantee high precision of bending.

Control Solution

The new compact adds a state-of-the-art complete touch control solution for synchronized press brakes.
This panel-based control, standard capable of controlling up to 4 axes, can be integrated in cabinets as well as used in an optional pendulant arm housing.
Machine adjustment and test bends are reduced to a minimum with a quick and easy program-to-production work sequence.

Technical Specifications & Components

Upper Tool Clamping

Upper tool clamping device is fast clamp design for efficiency.

Material Platform

Aluminium alloy material platform, attractive appearance, and decreases scratching of workpieces.

Precision Components

Ball screw/linear guide are high precision. Multi-V bottom die with different openings.

Tooling Setup

Quick Change Clamping

Adopt 2-V quick change clamping for bottom die.

Machine model		WE67K-220T6000
Nominal Pressure		2200 kN
Bending length		6000 mm
Distance between columns		1990 mm
Throat Depth		320 mm
Opening Height		350 mm
MAX Pressure of system		22Mpa
Slide running condition	moving journey/stroke	200mm
	fast down speed	180mm/s
	return speed	110mm/s
	working speed	10mm/s
Slide running precision	Position accuracy	±0.03mm
Slide running precision	Repeat Position accuracy	±0.02mm
Main motor power	Power	11 KW
Main motor power	rotate speed	1440r/min
Operate system	Model	DA53T
Oil Pump	Model	USA sunny
Bending precision	angle	±30
Bending precision	straightness	±0.7mm/m
Voltage		220/380/420/660V

Advanced Bending Technology

Deflection Compensation

A convex wedge consists of a set of convex oblique wedges with a beveled surface. Each protruding wedge is designed by finite element analysis according to the deflection curve of the slide and worktable.
The CNC controller system calculates the required compensation amount based on the load force. This force causes deflection and deformation of the vertical plates of the slide and table. And automatically control the relative movement of the convex wedge, so as to effectively compensate for the deflection deformation caused by the slider and the table riser, and obtain the ideal bending workpiece.

Safety Safeguard

Lasersafe PSC-OHS safety guard, communication between CNC controller and safety control module.
Dual beam protection is positioned 4mm below the tip of the upper tool to protect the operator's fingers.
Three regions (front, middle, and rear) of the laser can be flexibly shut down, ensuring complex box bending processing. The mute point is 6mm to realize efficient and safe production.

Follower Bending Supports

When marked, the bending support plate can realize the function of following the turn-over movement. The following angle and speed are calculated and controlled by the CNC controller, moving left and right along the linear guide.
Adjust the height up and down by hand; front and rear can also be adjusted manually to suit different bottom die openings.
The support platform can be a brush or stainless steel tube. According to the workpiece size, two supports linkage movement or separate movement can be chosen.

Operational & Quality Showcase

Bending Samples

Packaging

Factory

Our Service

Customer Visit

Off-line Activity

Frequently Asked Questions

Q Do you have CE document and other documents for customs clearance?

Yes, we have CE and provide you with a one-stop service. At first, we will show you documents, and after shipment, we will provide you with the CE certificate, Packing List, Commercial Invoice, and Sales Contract for customs clearance.

Q If we are interested in your machine, how do we choose the model?

You can share your material details (carbon steel or stainless steel), their thicknesses, and the maximum bending width. Based on this information, we will confirm the most suitable machine model for you.

Q How does the warranty work?

We offer a 3-year quality guarantee. The machine with its main parts (excluding consumables) shall be changed free of charge (or maintained) if any problem occurs during the warranty period.

Q Do you offer after-sales support?

Yes, we are happy to provide technical advice and support. We have skilled technicians available across the world to ensure your machines continue running to support your business.

Q Do you have other machine styles available?

Yes, we offer various machine styles to suit different requirements. If you have any questions, you can contact us at any time, 24/7—we are always here to help.

Q How is the machine packaged for delivery?

The machine is packaged securely to prevent damage during transit, ensuring safe delivery to your facility.
