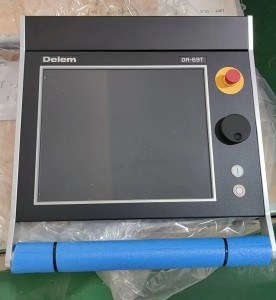

The DA-69T offers 2D as well as 3D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling.
Highly effective control algorithms optimise the machine cycle and minimise set-up time. This makes using press brakes easier, more efficient and more versatile than ever.

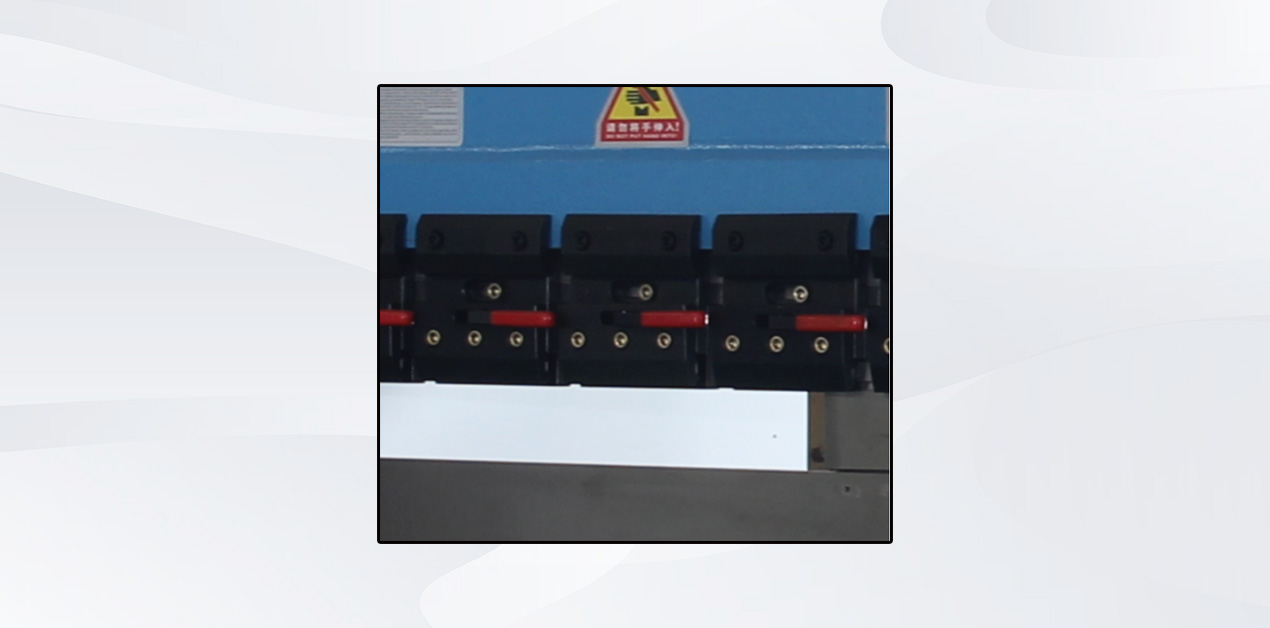

· Upper tool clamping device is fast clamp

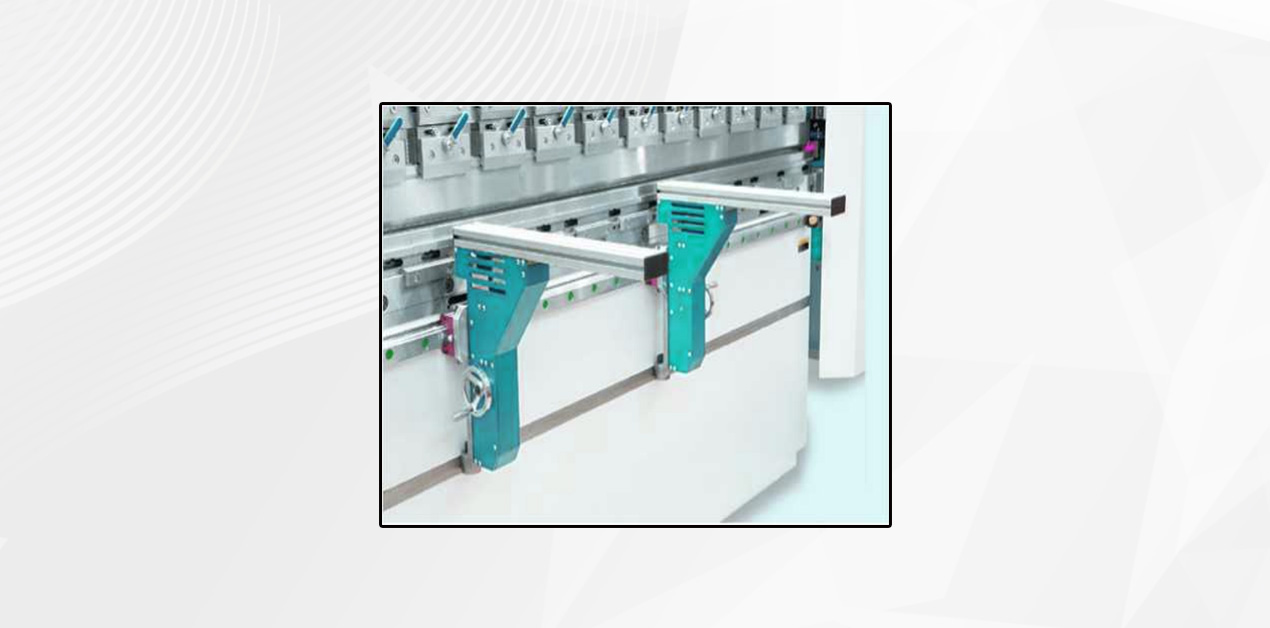

· Aluminium alloy material platform, attractive appearance, and decrease scratch of workpiece.

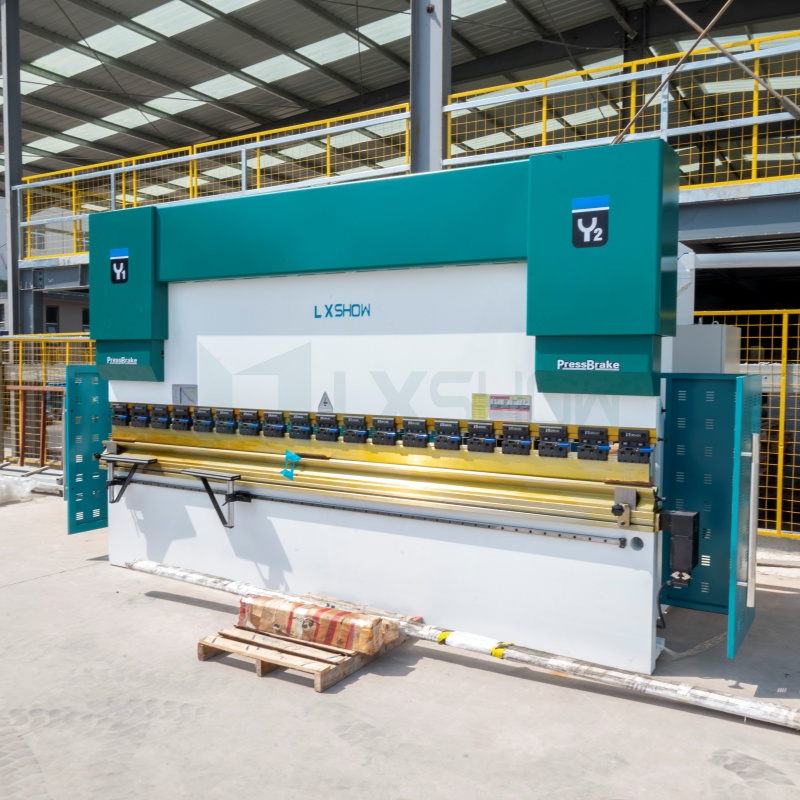

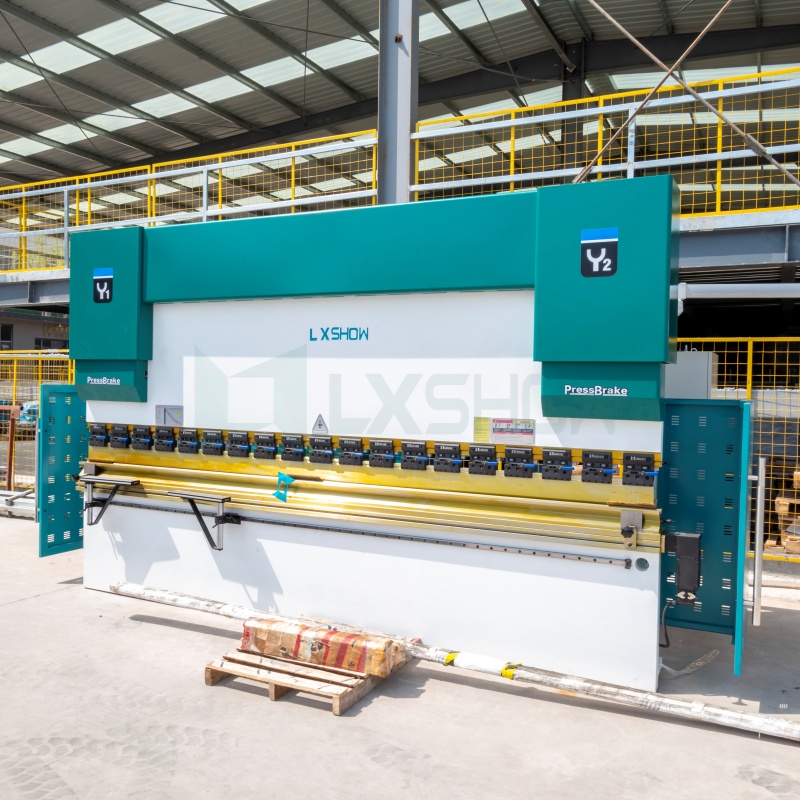

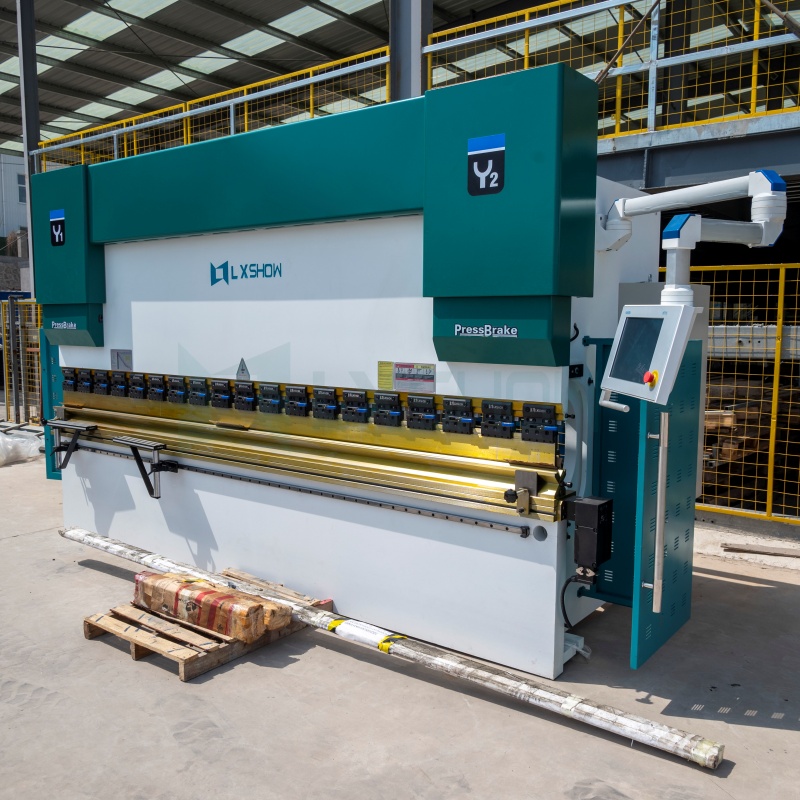

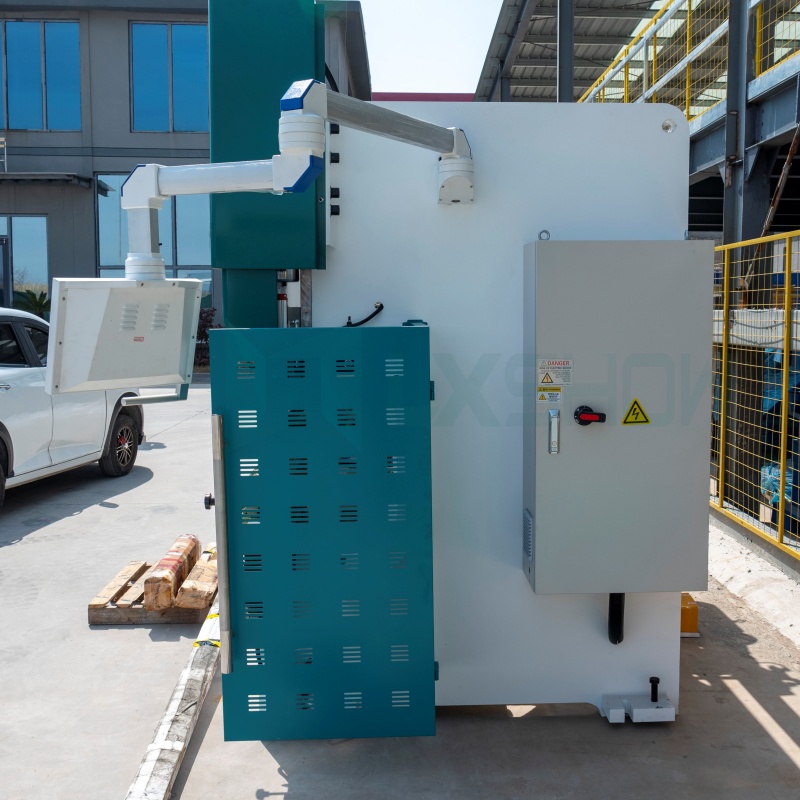

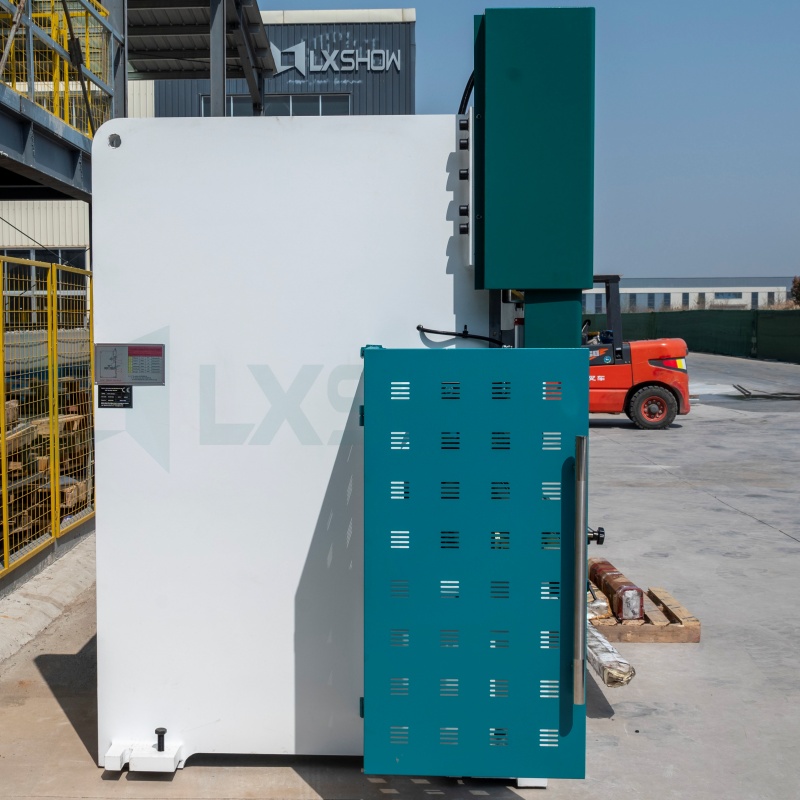

| Machine model | WE67K-160T4000 | |
| Nominal Pressure | 1600 kN | |
| Bending length | 4000 mm | |
| Distance between columns | 3200 mm | |
| Throat Depth | 320 mm | |
| Opening Height | 400 mm | |
| Slide running condition | moving journey/stroke | 200mm |
| fast down speed | 180mm/s | |
| return speed | 110mm/s | |
| working speed | 10mm/s | |
| Slide running precision | Position accuracy | ±0.03mm |
| Repeat Position accuracy | ±0.02mm | |
| Main motor power | Power | 11 KW |
| rotate speed | 1440r/min | |
| Operate system | Model | KT15 |
| Oil Pump | Model | USA sunny |
| Bending precision | angle | ±30 |
| straightness | ±0.7mm/m | |
| Voltage | 220/380/420/660V | |

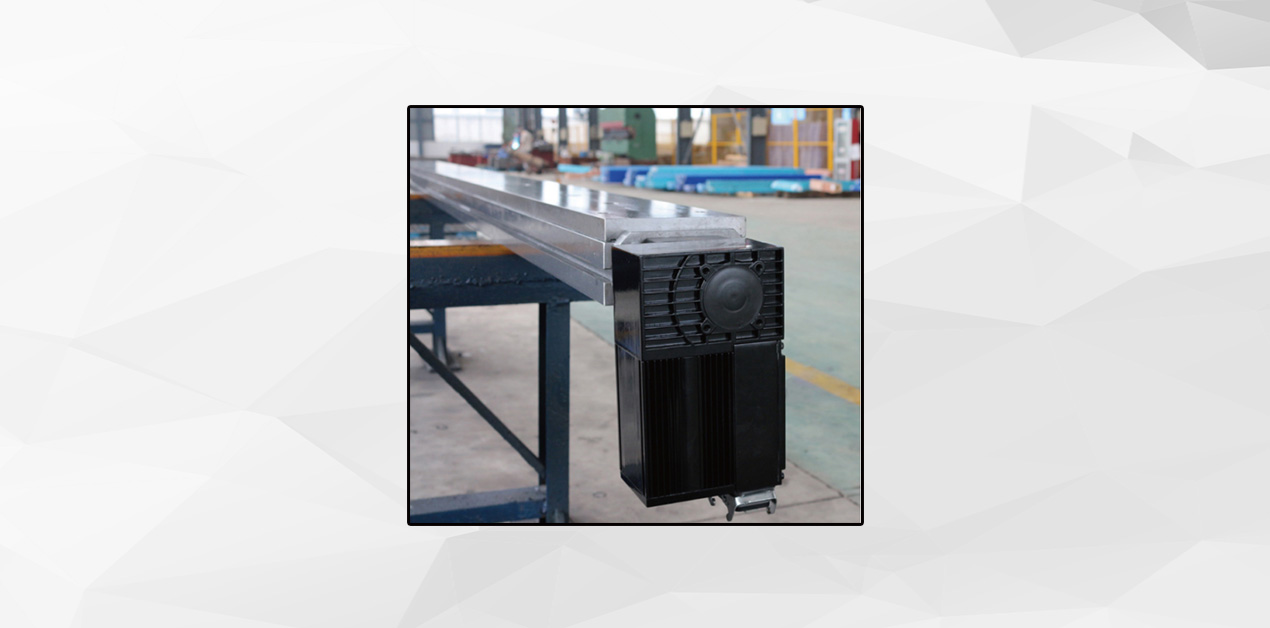

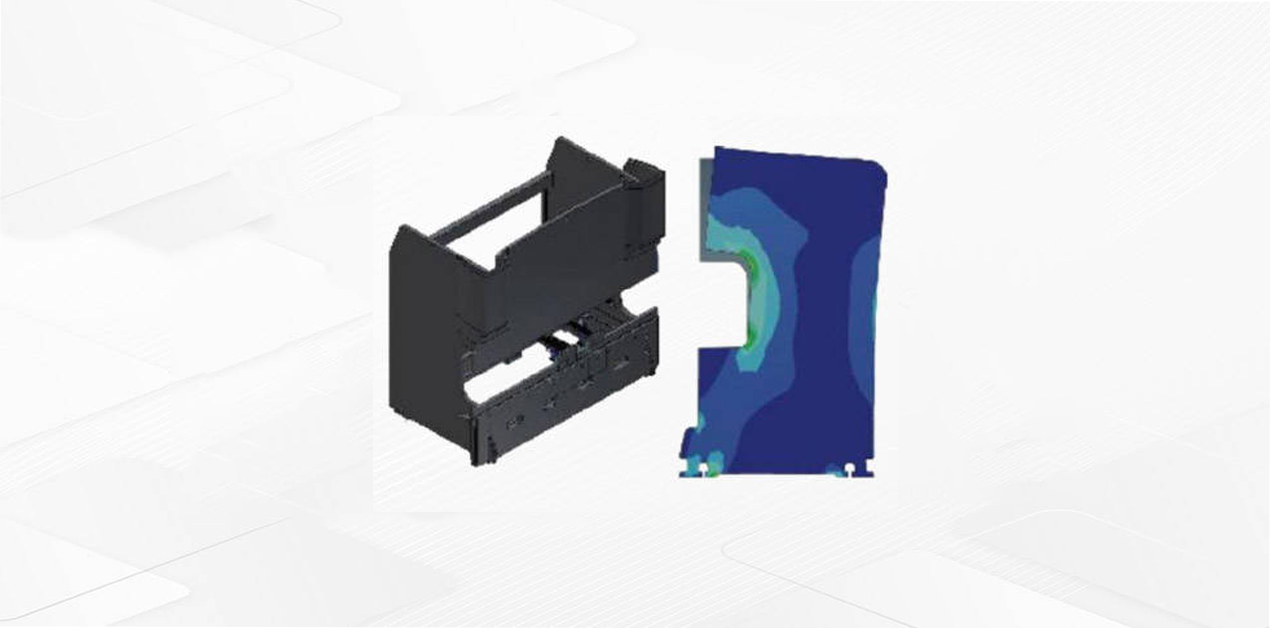

· A convex wedge consists of a set of convex oblique wedges with a beveled surface. Each protruding wedge is designed by finite element analysis according to the deflection curve of the slide and worktable.
· The CNC controller system calculates the required compensation amount based on the load force. This force causes deflection and deformation of the vertical plates of the slide and table, and automatically controls the relative movement of the convex wedge, so as to effectively compensate for the deflection deformation and obtain the ideal bending workpiece.

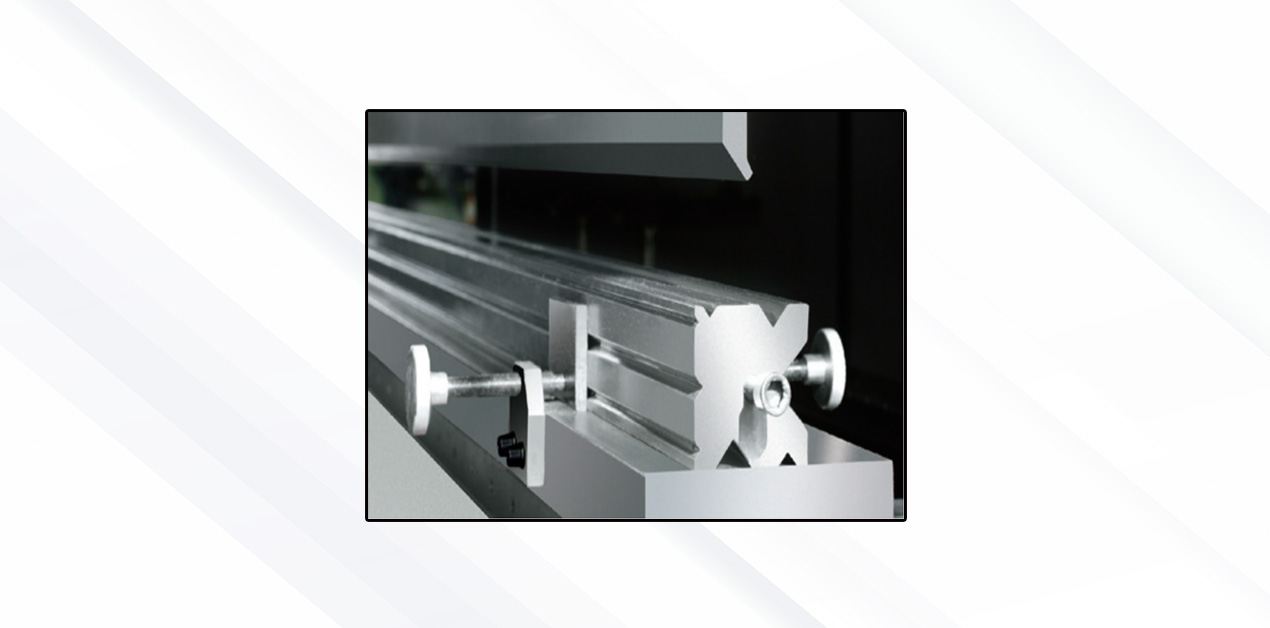

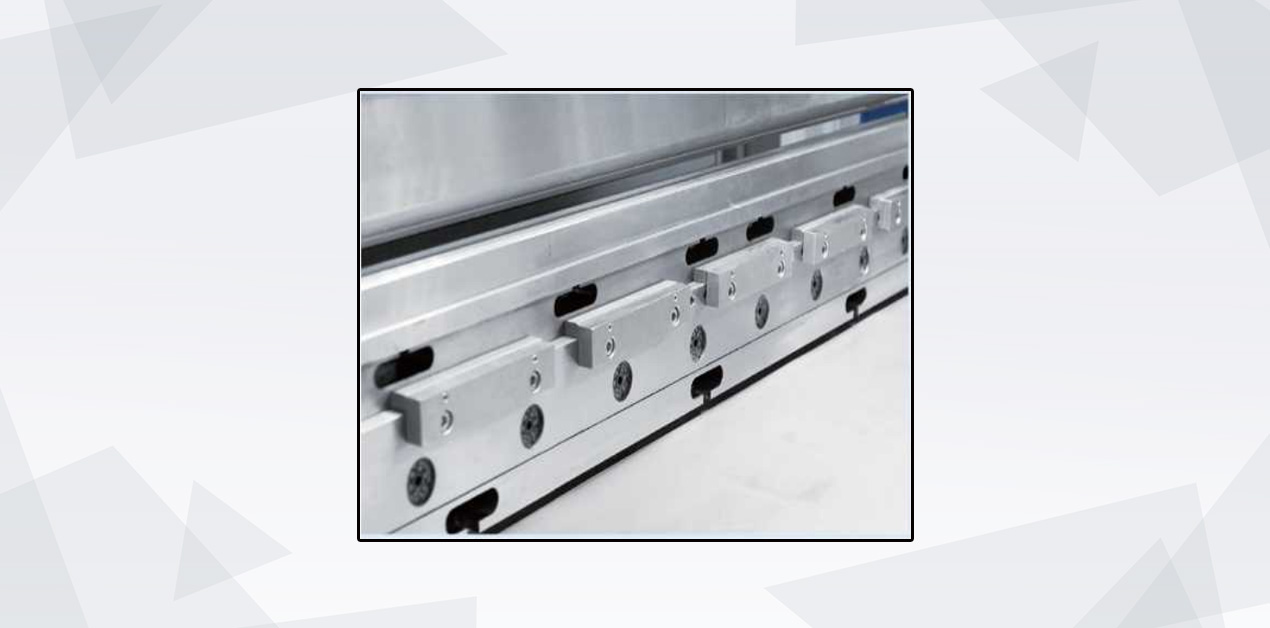

· Adopt 2-v quick change clamping for bottom die

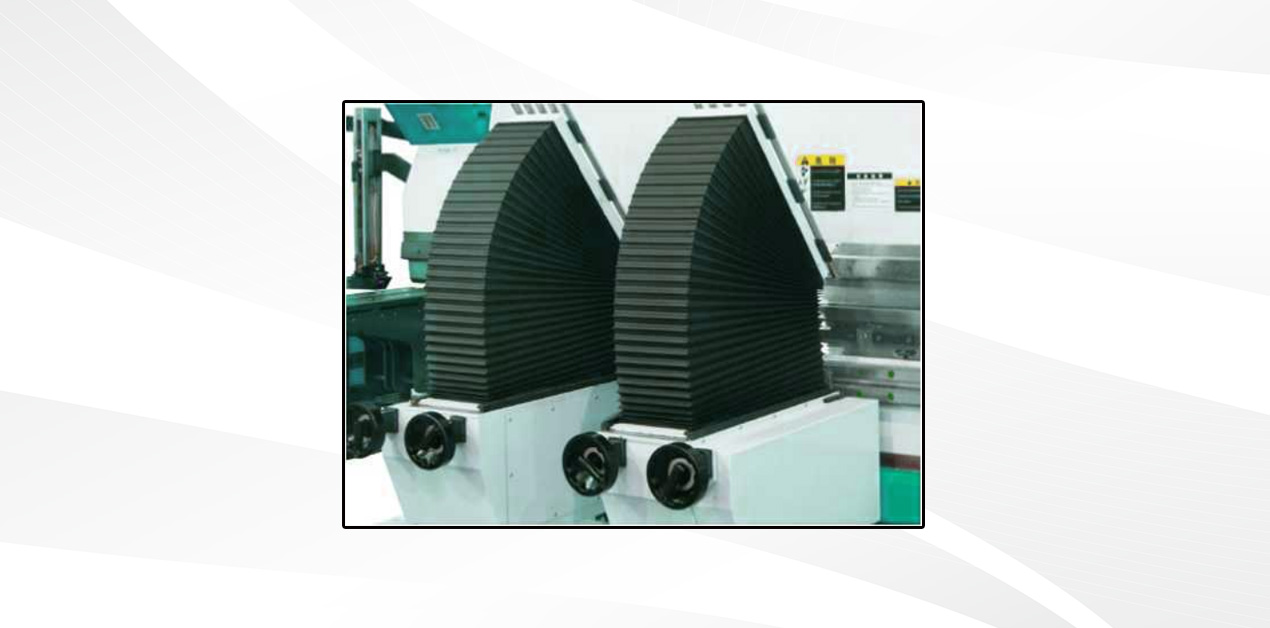

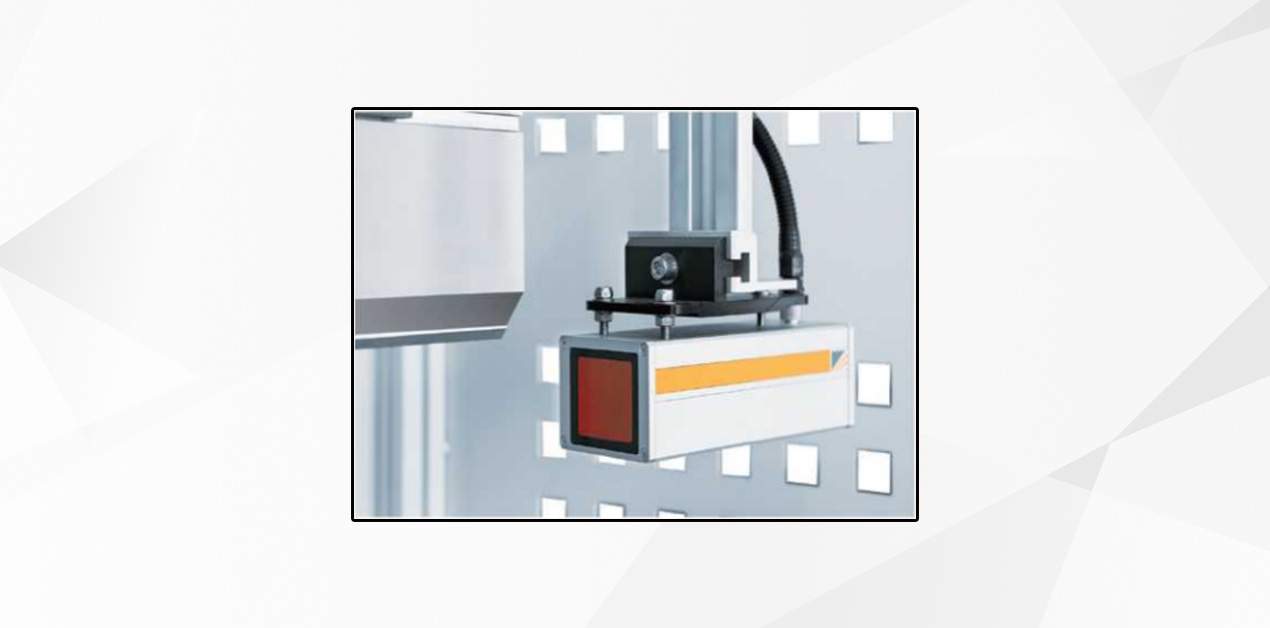

· Lasersafe PSC-OHS safety guard, communication between CNC controller and safety control module.
· Dual beam from protection are point below 4mm below the tip of upper tool, to protect operator's fingers; three regions (front, middle and real) of laser can be flexibly closed, ensure complex box bending processing; mute point is 6mm, to realize efficient and safe production.
· When mark bending support plate can realize the function of turning over following. Following angle and speed are calculated and controlled by CNC controller, move along linear guide left and right.
· Adjust the height up and down by hand, front and rear can also be adjust manually to suit for different bottom die opening.
· Support platform can be brush or stainless steel tube, according to workpiece size, two supports linkage movement or separate movement can be chosen.
