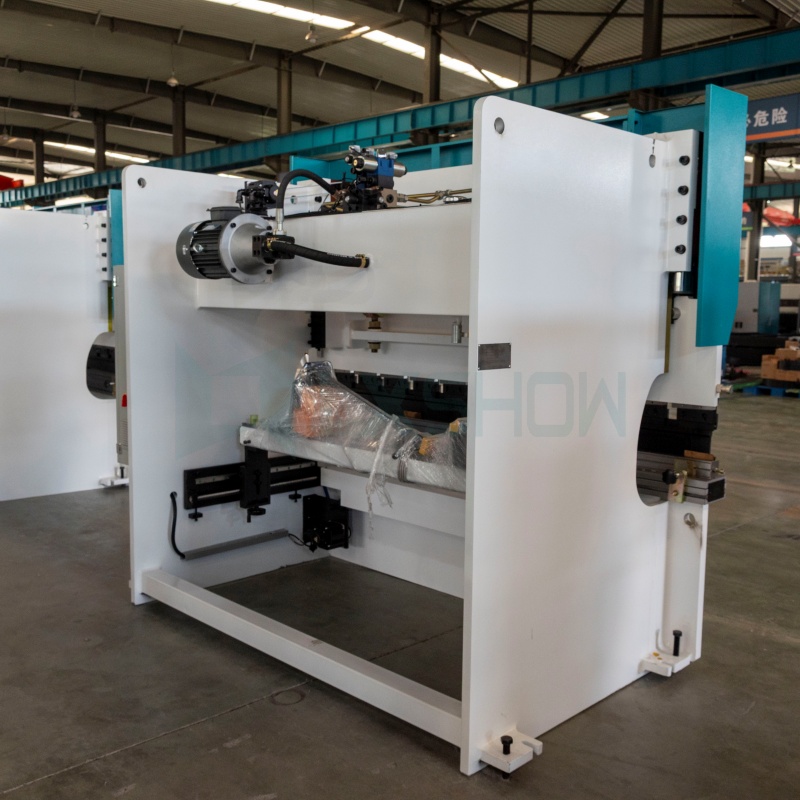

Complete steel-welded structure, with sufficient strength and rigidity.
Hydraulic down-stroke structure, reliable and smooth.
Mechanical stop unit, synchronous torque, and high precision.
The backgauge adopts the backgauge mechanism of the T-type screw with smooth rod, which is driven by a motor.
Upper tool with tension compensating mechanism, in order to guarantee high precision of bending.
TP10S NC system.
Optional Configuration
Crowning Compensation for Worktable
· A convex wedge consists of a set of convex oblique wedges with a beveled surface. Each protruding wedge is designed by finite element analysis according to the deflection curve of the slide and worktable.
· The CNC controller system calculates the required compensation amount based on the load force. This force causes deflection and deformation of the vertical plates of the slide and table. And automatically control the relative movement of the convex wedge, so as to effectively compensate for the deflection deformation caused by the slider and the table riser, and obtain the ideal bending workpiece.
Quick Change Bottom Die
· Adopt 2-v quick change clamping for bottom die.
Lasersafe Safety Guard
· Lasersafe PSC-OHS safety guard, communication between CNC controller and safety control module.
· Dual beam from protection are point below 4mm below the tip of upper tool, to protect operator's fingers; three regions (front, middle and real) of laser can be flexibly closed, ensure complex box bending processing; mute point is 6mm, to realize efficient and safe production.
Metal Bending Machine Parameter

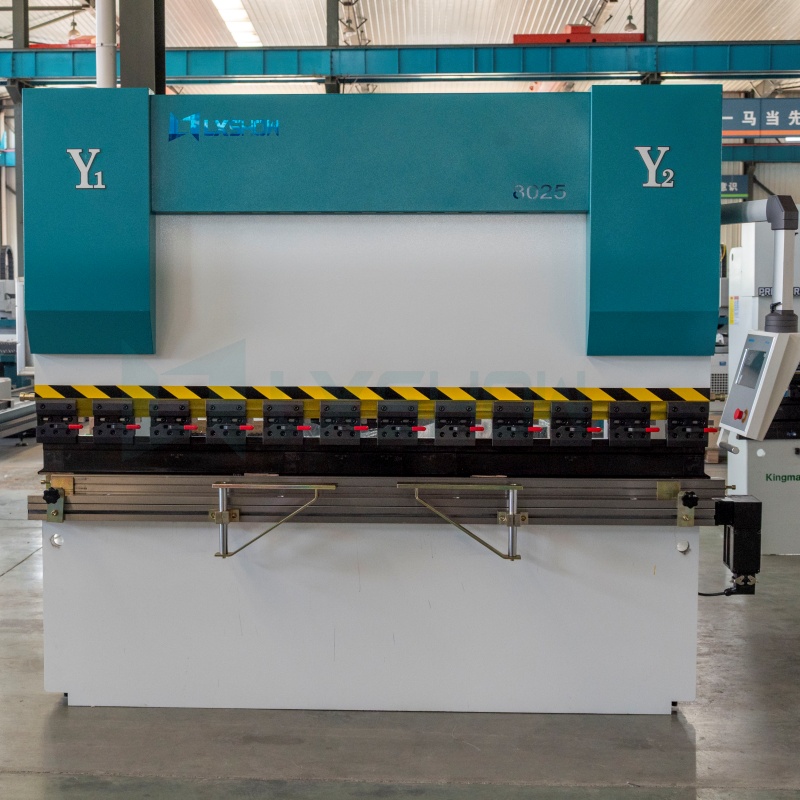

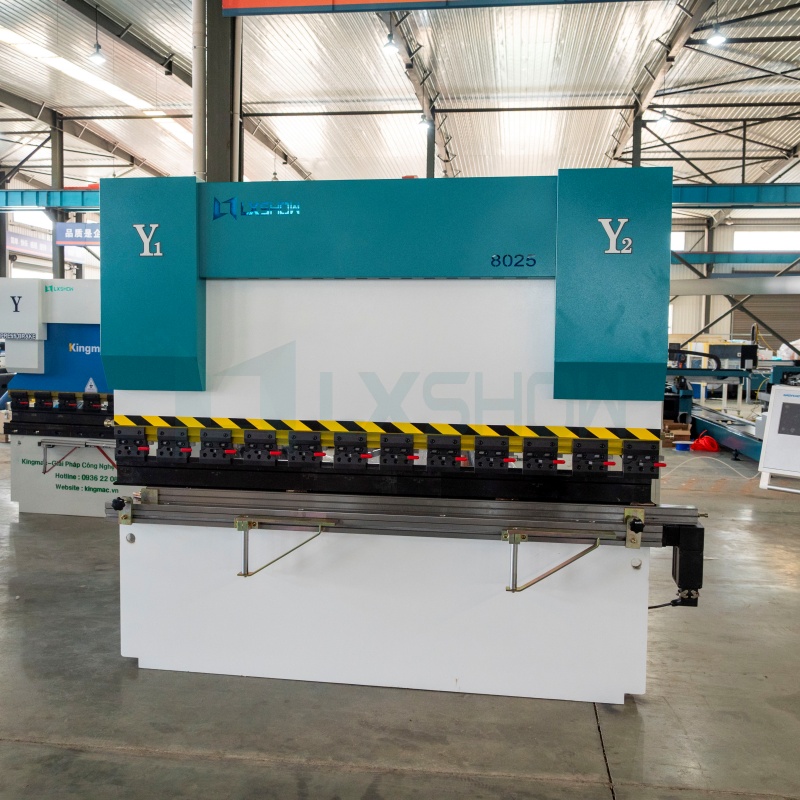

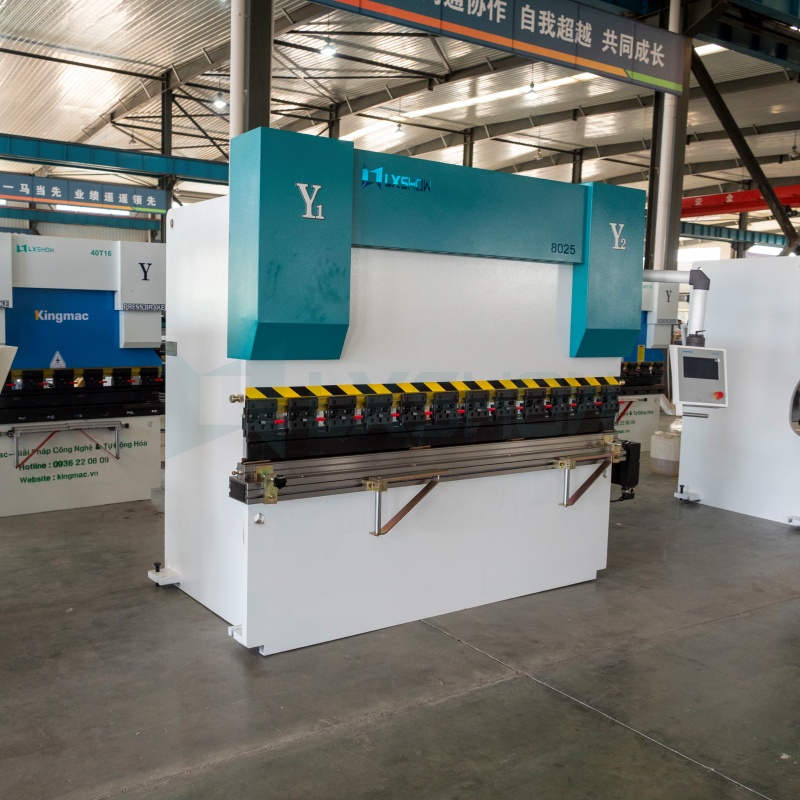

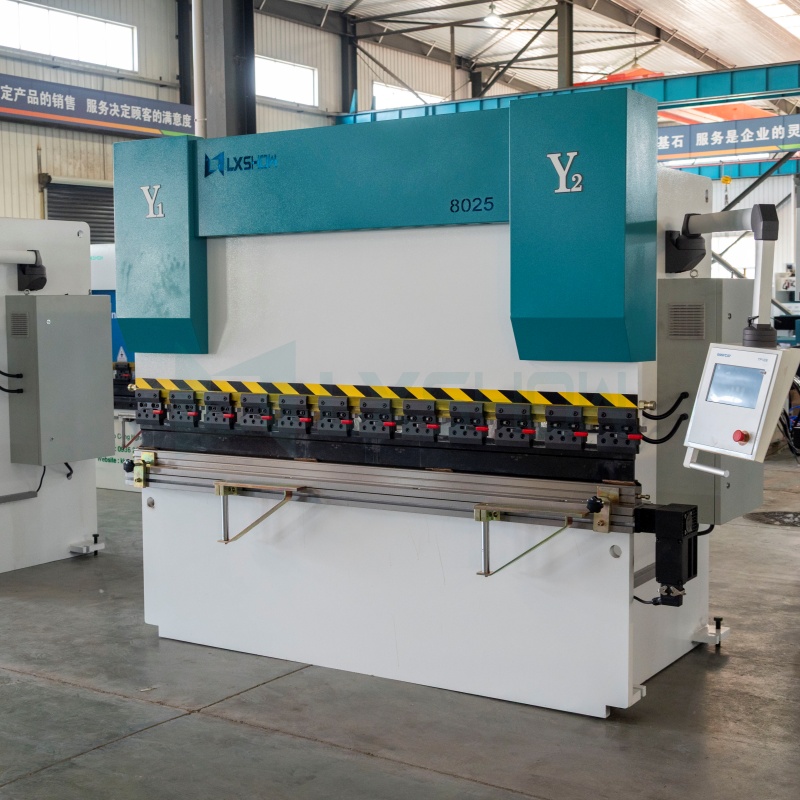

Specification Details (WG67K-80T/2500)
Machine model
WG67K-80T/2500
Nominal Pressure
800kN
Bending length
2500 mm
Distance between columns
1960 mm
ThroatDepth
310mm
Open height
320 mm
Slide running condition
moving journey/stroke
120mm
fast down speed
100mm/s
return speed
85mm/s
working speed
10mm/s
Slide running precision
Position accuracy
±0.03mm
Repeat Position accuracy
±0.02mm
Main motor power
Power
7.5KW
Operate system
Model
TP10S System
Oil Pump
Model
Silent gear pump
Control axis number
cylinder axis, rear gauge front and rear axis
Voltage
220/380/420/660V
Model
Weight
Oil Cylinder Diameter
Cylinder Stroke
Wallboard
Slider
Workbench Vertical Plate
WG67K-30T1600
1.6 tons
95
80
18
20
20
WG67K-40T2200
2.1 tons
110
100
25
30
25
WG67K-40T2500
2.3 tons
110
100
25
30
25
WG67K-63T2500
3.6 tons
140
120
30
35
35
WG67K-63T3200
4 tons
140
120
30
35
40
WG67K-80T2500
4 tons
160
120
35
40
40
WG67K-80T3200
5 tons
160
120
35
40
40
WG67K-80T4000
6 tons
160
120
35
40
45
WG67K-100T2500
5 tons
180
140
40
50
50
WG67K-100T3200
6 tons
180
140
40
50
50
WG67K-100T4000
7.8 tons
180
140
40
50
60
WG67K-125T3200
7 tons
190
140
45
50
50
WG67K-125T4000
8 tons
190
140
45
50
60
WG67K-160T3200
8 tons
210
190
50
60
60
WG67K-160T4000
9 tons
210
190
50
60
60
WG67K-200T3200
11 tons
240
190
60
70
70
WC67E-200T4000
13 tons
240
190
60
70
70
WG67K-200T5000
15 tons
240
190
60
70
70
WG67K-200T6000
17 tons
240
190
70
80
80
WG67K-250T4000
14 tons
280
250
70
70
70
WG67K-250T5000
16 tons
280
250
70
70
70
WG67K-250T6000
19 tons
280
250
70
70
80
WG67K-300T4000
15 tons
300
250
70
80
90
WG67K-300T5000
17.5 tons
300
250
80
90
90
WG67K-300T6000
25 tons
300
250
80
90
90
WG67K-400T4000
21 tons
350
250
80
90
90
WG67K-400T6000
31 tons
350
250
90
100
100
WG67K-500T4000
26 tons
380
300
100
110
110
WG67K-500T6000
40 tons
380
300
100
120
120
Factory & Production Showcase
Samples
Packaging
Factory
Our Service
Customer Visit
Off-line Activity
TP10S NC Control System Specifications
TP10S Touch screen
Support angle programming and depth programming switching
Support settings of mold and product library
Each step can set opening height freely
The shift point position can be freely controlled
It can realize Multi-axis expansion of Y1, Y2, R
Support mechanical crowning worktable control
Support large circular arc automatic generate program
Support top dead center, bottom dead center, loose foot, delay and other step change options to improve processing efficiency effectively
Support electromagnet simple bridge
Support fully automatic pneumatic pallet bridge function
Support automatic bending, realize unmanned bending control, and support up to 25 steps of automatic bending
Support time control of valve group configuration function, fast down, slow down, return, unloading action and valve action
It has 40 product libraries, each product library has 25 steps, large circular arc supports 99 steps.
Ball screw/linear guides are high precision
Upper tool clamping device is fast clamp
Multi-V bottom die with different openings
Aluminium alloy material platform, attractive appearance, and decrease scratch of workpiece.
Frequently Asked Questions
QDo you have CE document and other documents for customs clearance?
Yes, we have CE, and provide you with a one-stop service. At first we will show you, and after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
QIf we are interested in your machine, how do we choose?
Could you tell us your materials (carbon steel or stainless steel), their thickness, and the maximum bending width? Based on this, we will confirm the ideal machine model for you.
QHow about the warranty?
We offer a 3-year quality guarantee. The machine with main parts (excluding the consumables) shall be changed free of charge (some parts will be maintained) if any problem occurs during the warranty period.
QDo you have after-sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
QDo you have any other machine style?
Yes, please check the machine options listed above. If you have any questions, you can contact us at any time, 24/7. We are always here.
QWhat features are provided by the TP10S CNC controller?
The TP10S system features a touch screen supporting angle and depth programming, mold and product library settings, multi-axis expansion (Y1, Y2, R), and automated bending up to 25 steps.
