TECHNICAL PARAMETERS
| Nominal force (tons) |
35 |
| Bending length（mm） |
1200 |
| Column spacing（mm） |
950 |
| Height of opening between top and bottom（mm） |
430 |
| Main motor power（KW） |
7.5×2 |
| Rear stock motor power（KW） |
7.5/0.4 |
| Post positioning repeat accuracy（mm） |
±0.01 |
| Top table position repeat accuracy（mm） |
±0.01 |
| Bending angle accuracy |
±0.3° |
| Speed of rise (mm/s) |
200 |
| Return speed (mm/s) |
200 |
| Machine weight（KG） |
2500 |
FREQUENTLY ASKED QUESTIONS
Q
What is the maximum bending capability of this machine?
This machine delivers a nominal force of 35 tons and supports a maximum bending length of 1200 mm, making it highly efficient for processing small to medium-sized metal sheets.
Q

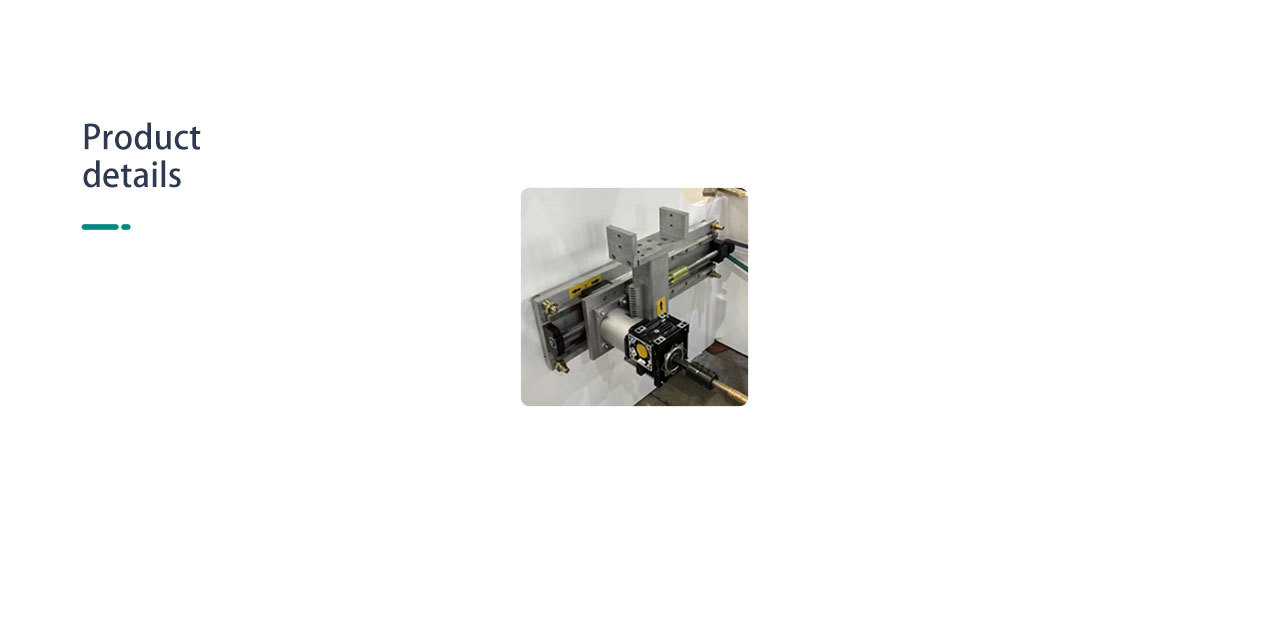

What is the positioning precision of the backgauge system?
The post positioning repeat accuracy is within ±0.01 mm, and the top table position repeat accuracy is also within ±0.01 mm, which guarantees consistent precision even during high-volume production runs.
Q
What are the motor specifications of this bending machine?
The main motor system features dual 7.5 KW motors (7.5×2 KW), and the rear stock motor power is configured at 7.5/0.4 KW to provide reliable and dynamic power output.
Q
What bending angle accuracy can this equipment achieve?
The system achieves a highly precise bending angle tolerance of ±0.3°, allowing operators to satisfy strict industrial bending standards.
Q
What are the working speeds and open height details?
The machine features an opening height of 430 mm between the top and bottom tables. It functions with an impressive rising speed and return speed of 200 mm/s to optimize task cycle times.
Q
How heavy is the equipment and how much space is needed between columns?
The total machine weight is 2500 kg, ensuring high structural stability during high-speed operations. The clear column spacing is 950 mm, providing ample space for lateral workpiece removal.
