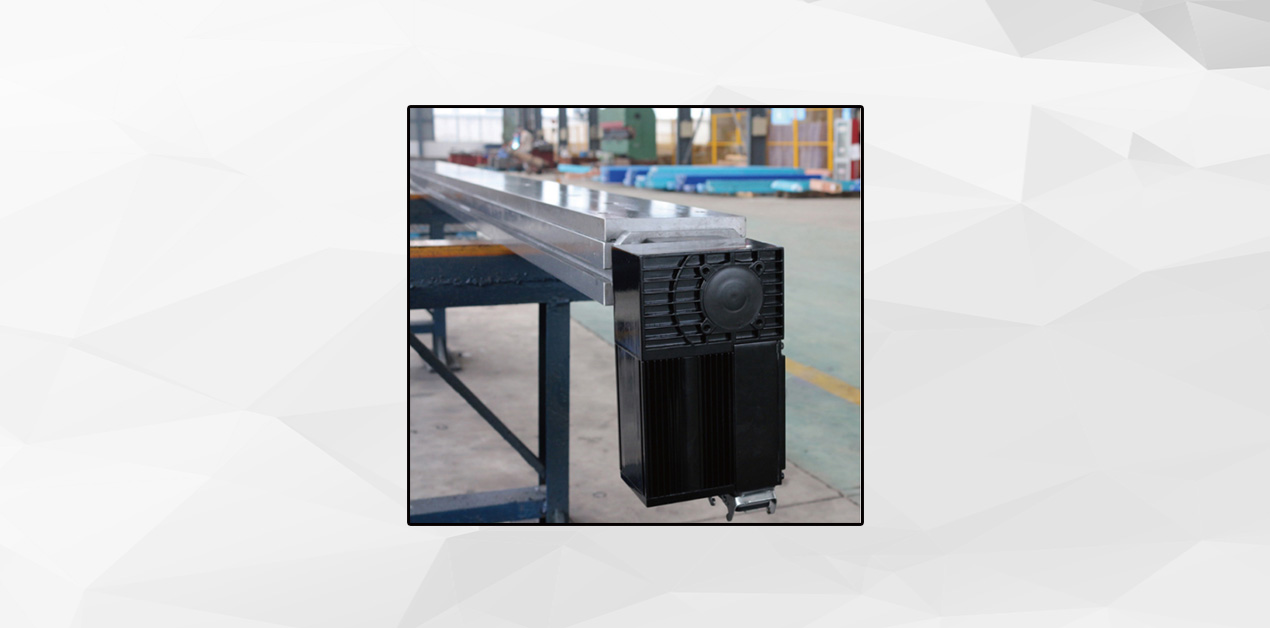

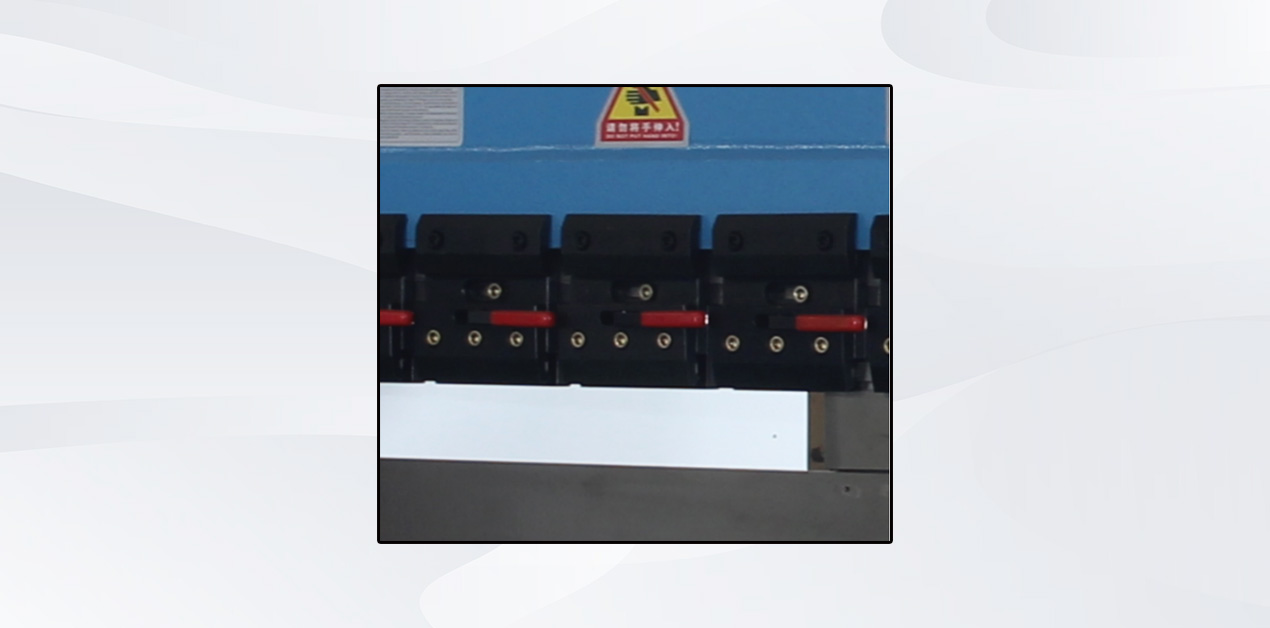

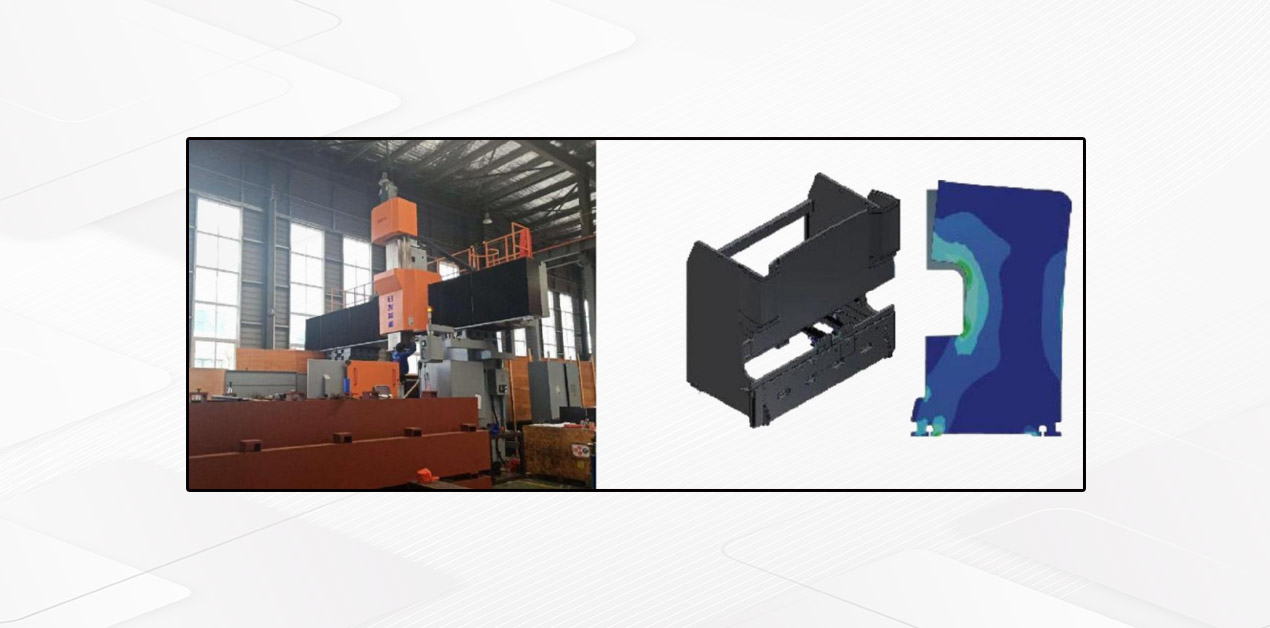

A convex wedge consists of a set of convex oblique wedges with a beveled surface. Each protruding wedge is designed by finite element analysis according to the deflection curve of the slide and worktable.
The CNC controller system calculates the required compensation amount based on the load force. This force causes deflection and deformation of the vertical plates of the slide and table. And automatically control the relative movement of the convex wedge, so as to effectively compensate for the deflection deformation caused by the slider and the table riser, and obtain the ideal bending workpiece.

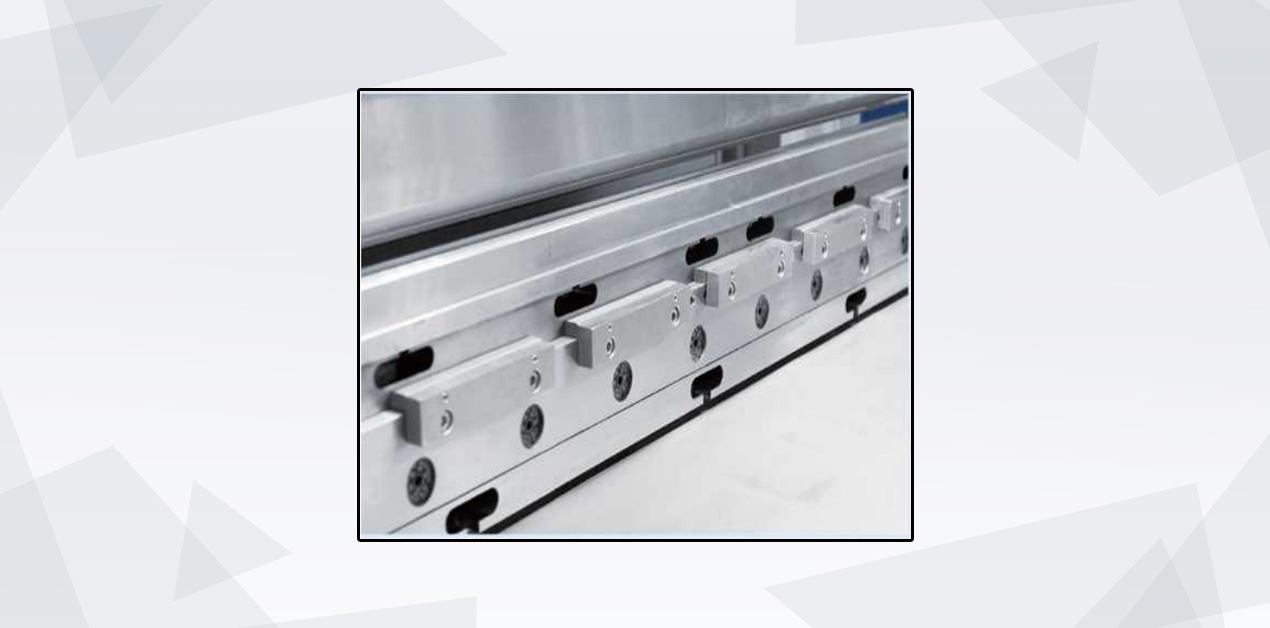

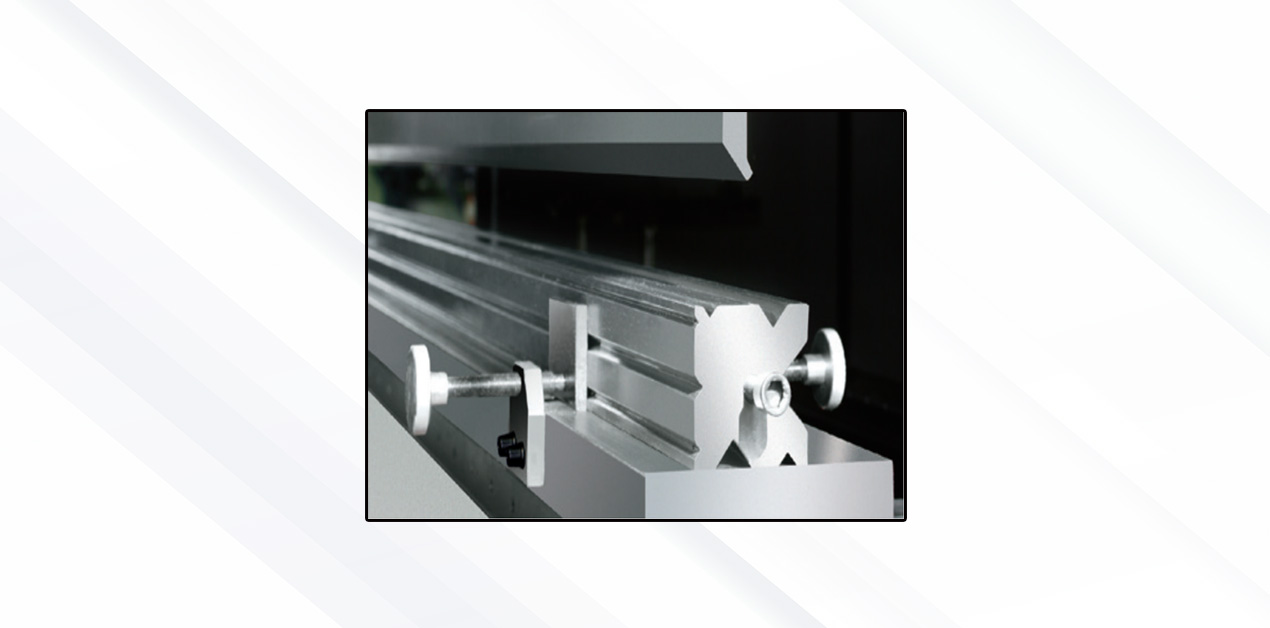

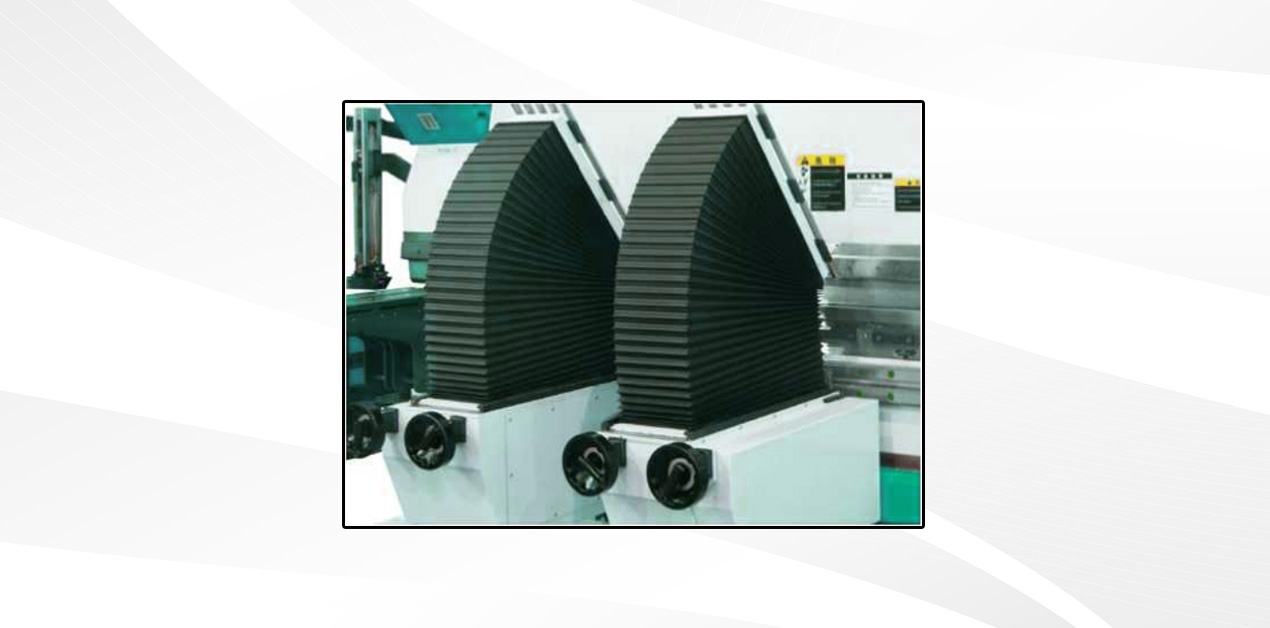

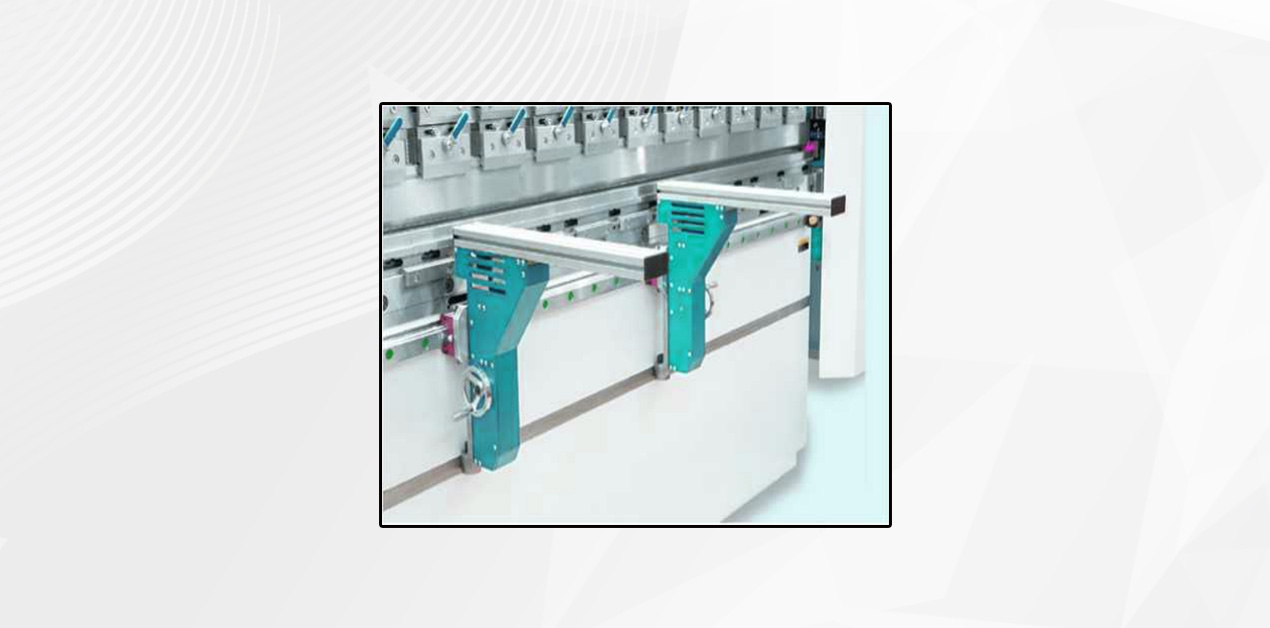

Adopt 2-v quick change clamping for bottom die.

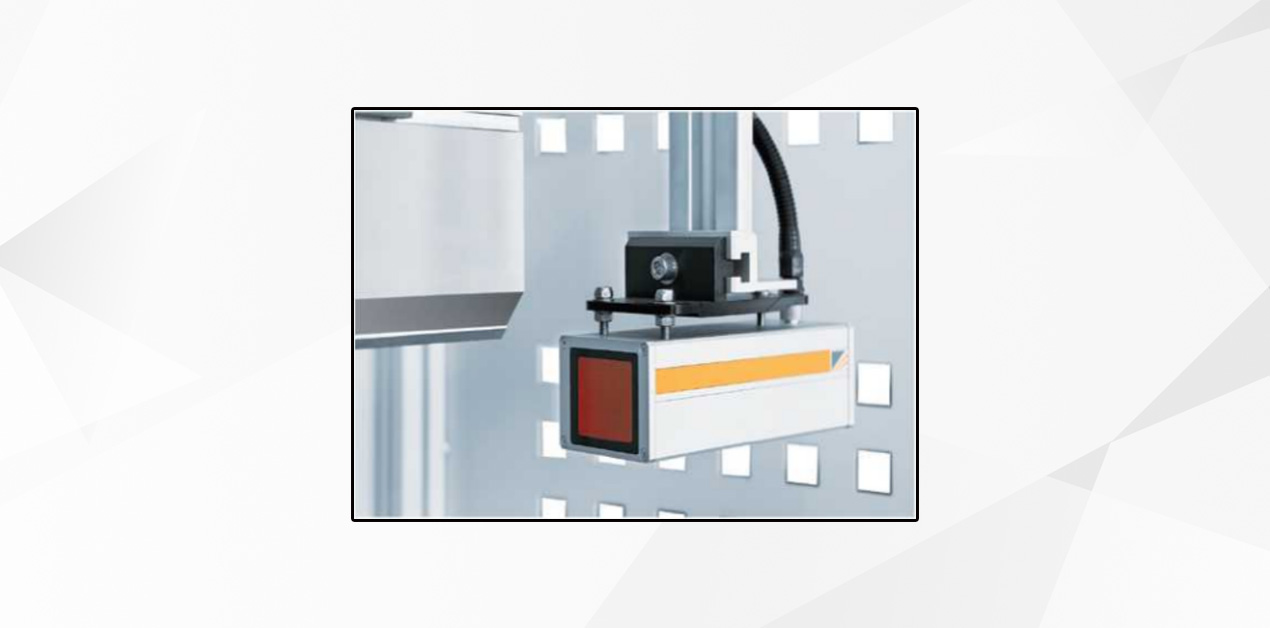

Lasersafe PSC-OHS safety guard, communication between CNC controller and safety control module.
Dual beam from protection are point below 4mm below the tip of upper tool, to protect operator`s fingers; three regions (front, middle and real) of laser can be flexibly closed, ensure complex box bending processing; mute point is 6mm, to realize efficient and safe production.

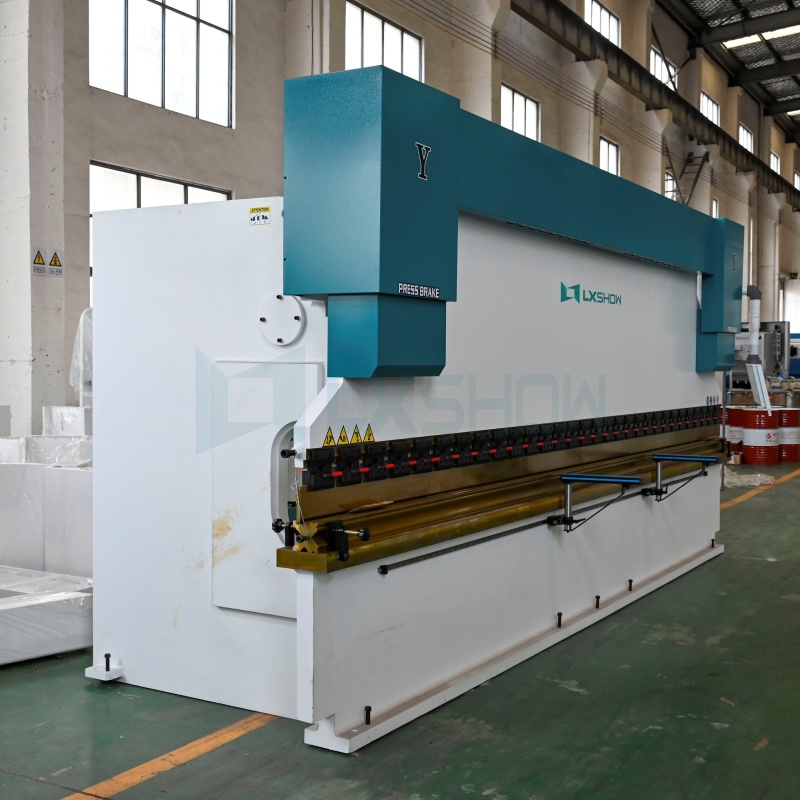

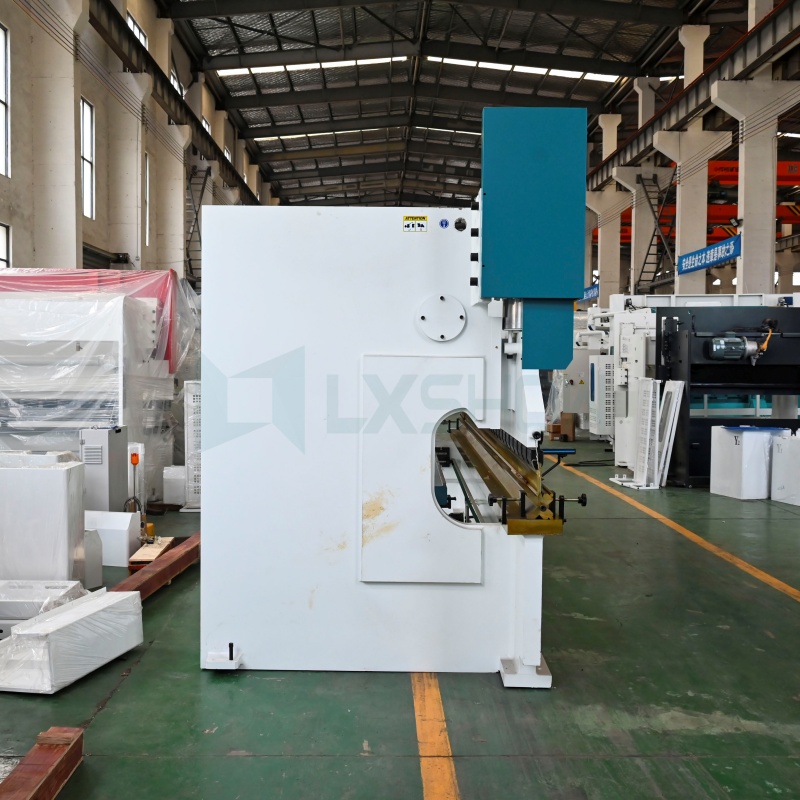

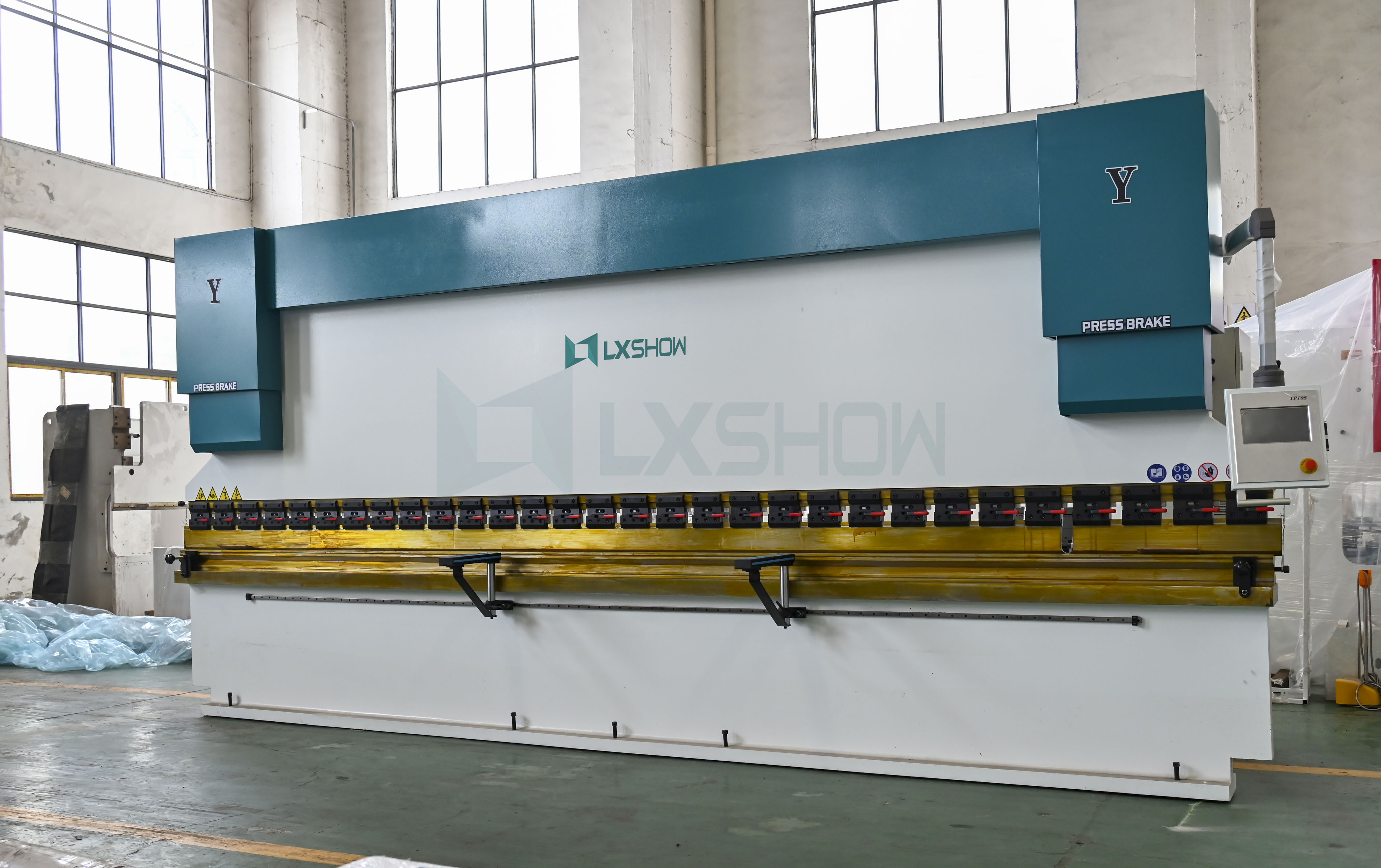

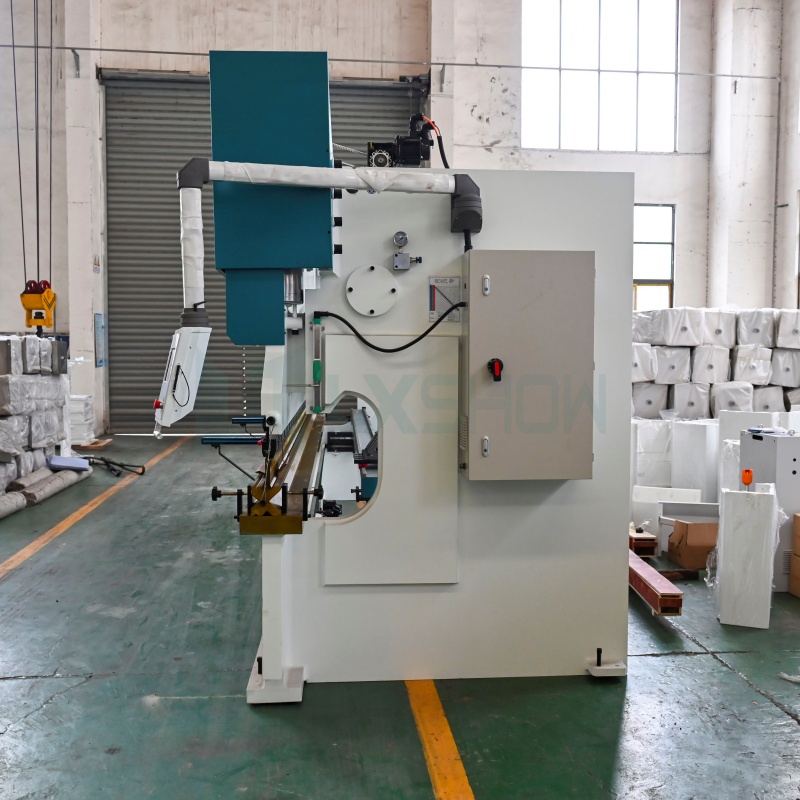

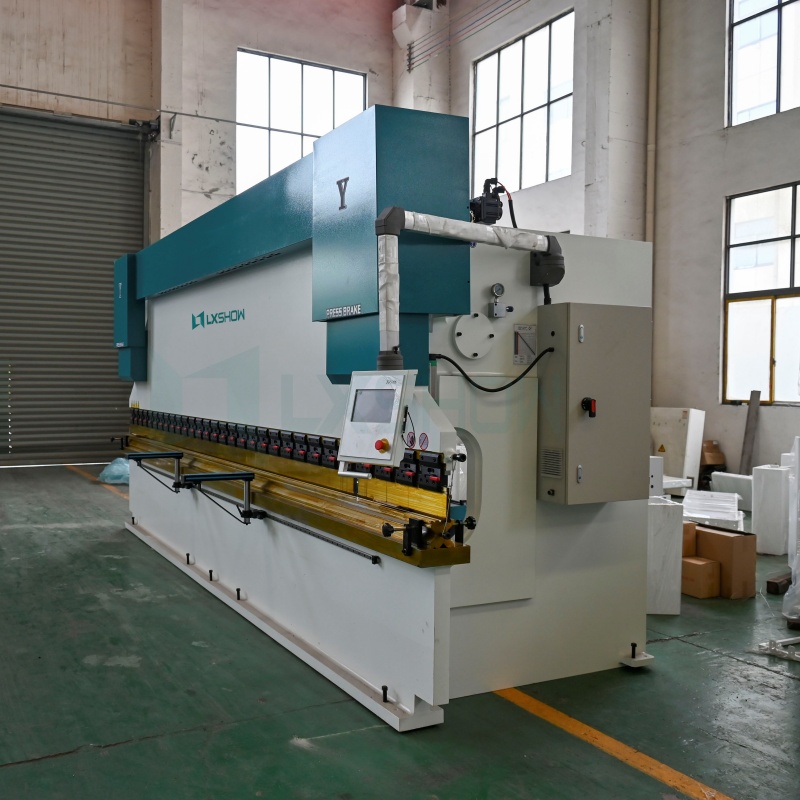

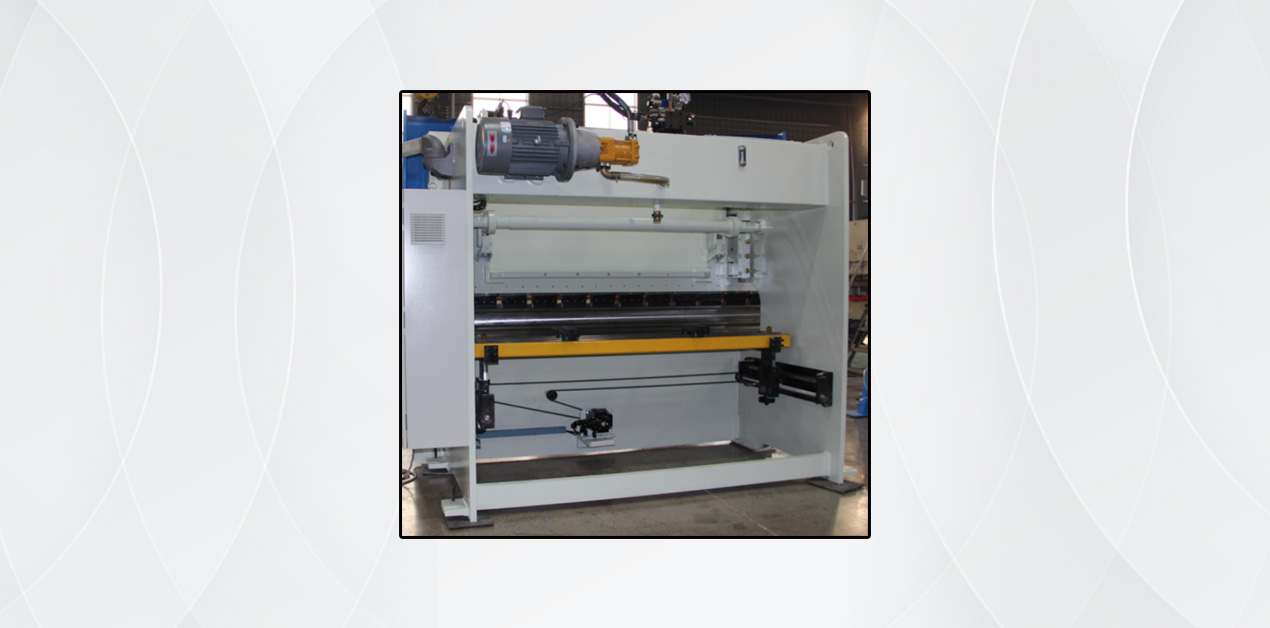

| Machine Specification | WG67K-200T/6000 Value | |
| Machine tool type | WG67K-200T/6000 | |
| Nominal force | 2000 kN | |
| Bending length | 6000 mm | |
| Distance between columns | 5200 mm | |
| Throat depth | 340 mm | |
| Open height | 460 mm | |
| Slider motion | Stroke | 200mm |
| Fast down speed | 100mm/s | |
| Return speed | 85mm/s | |
| Work pacing | 10mm/s | |
| Slider motion accuracy | Positional accuracy | ±0.03mm |
| Repeated positioning accuracy | ±0.02mm | |
| Main motor power | Power | 11KW |

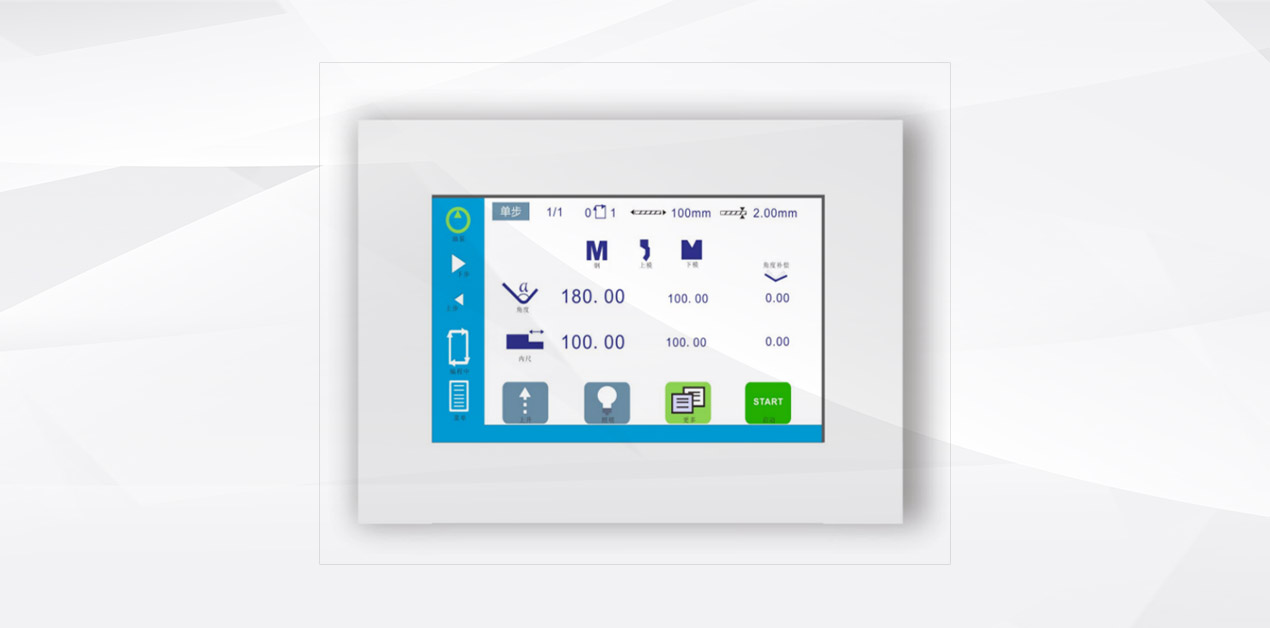

| Operate system | Model | TP10S System |
| Oil Pump | Model | Silent gear pump |
| Model | Weight | Oil Cylinder Dia. | Cylinder Stroke | Wallboard | Slider | Workbench Vert. Plate |
| WG67K-30T1600 | 1.6 tons | 95 | 80 | 18 | 20 | 20 |
| WG67K-40T2200 | 2.1 tons | 110 | 100 | 25 | 30 | 25 |
| WG67K-40T2500 | 2.3 tons | 110 | 100 | 25 | 30 | 25 |
| WG67K-63T2500 | 3.6 tons | 140 | 120 | 30 | 35 | 35 |
| WG67K-63T3200 | 4 tons | 140 | 120 | 30 | 35 | 40 |
| WG67K-80T2500 | 4 tons | 160 | 120 | 35 | 40 | 40 |
| WG67K-80T3200 | 5 tons | 160 | 120 | 35 | 40 | 40 |
| WG67K-80T4000 | 6 tons | 160 | 120 | 35 | 40 | 45 |
| WG67K-100T2500 | 5 tons | 180 | 140 | 40 | 50 | 50 |
| WG67K-100T3200 | 6 tons | 180 | 140 | 40 | 50 | 50 |
| WG67K-100T4000 | 7.8 tons | 180 | 140 | 40 | 50 | 60 |
| WG67K-125T3200 | 7 tons | 190 | 140 | 45 | 50 | 50 |
| WG67K-125T4000 | 8 tons | 190 | 140 | 45 | 50 | 60 |
| WG67K-160T3200 | 8 tons | 210 | 190 | 50 | 60 | 60 |
| WG67K-160T4000 | 9 tons | 210 | 190 | 50 | 60 | 60 |
| WG67K-200T3200 | 11 tons | 240 | 190 | 60 | 70 | 70 |
| WC67E-200T4000 | 13 tons | 240 | 190 | 60 | 70 | 70 |
| WG67K-200T5000 | 15 tons | 240 | 190 | 60 | 70 | 70 |
| WG67K-200T6000 | 17 tons | 240 | 190 | 70 | 80 | 80 |
| WG67K-250T4000 | 14 tons | 280 | 250 | 70 | 70 | 70 |
| WG67K-250T5000 | 16 tons | 280 | 250 | 70 | 70 | 70 |
| WG67K-250T6000 | 19 tons | 280 | 250 | 70 | 70 | 80 |
| WG67K-300T4000 | 15 tons | 300 | 250 | 70 | 80 | 90 |
| WG67K-300T5000 | 17.5 tons | 300 | 250 | 80 | 90 | 90 |
| WG67K-300T6000 | 25 tons | 300 | 250 | 80 | 90 | 90 |
| WG67K-400T4000 | 21 tons | 350 | 250 | 80 | 90 | 90 |
| WG67K-400T6000 | 31 tons | 350 | 250 | 90 | 100 | 100 |
| WG67K-500T4000 | 26 tons | 380 | 300 | 100 | 110 | 110 |
| WG67K-500T6000 | 40 tons | 380 | 300 | 100 | 120 | 120 |
