• Complete steel-welded structure, with sufficient strength and rigidity;
• Hydraulic down-stroke structure, reliable and smooth;
• Mechanical stop unit, synchronous torque, and high precision;
• The backgauge adopts the backgauge mechanism of the T-type screw with smooth rod, which is driven by a motor;

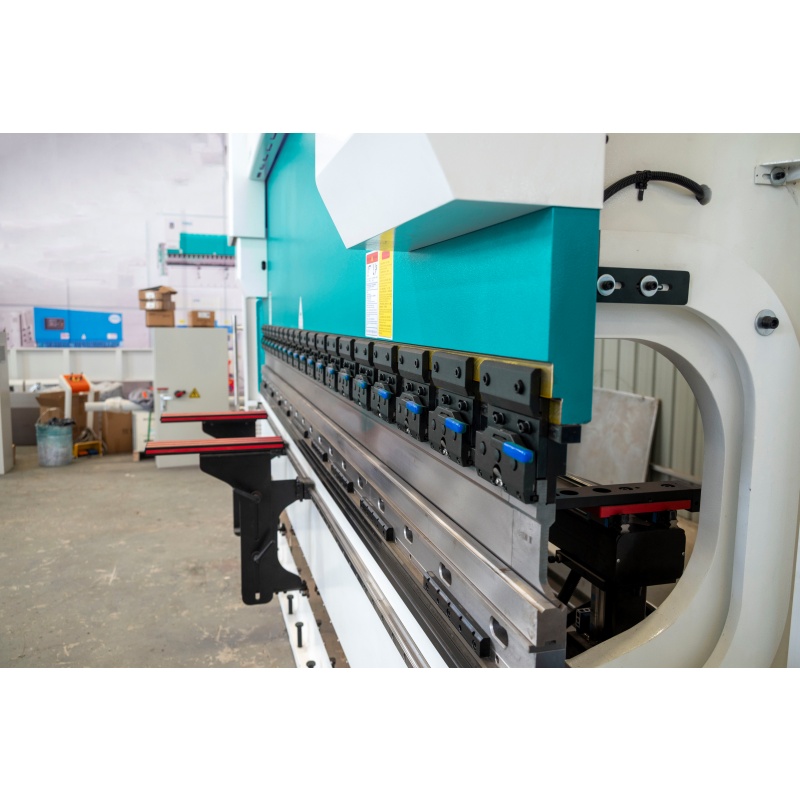

• Upper tool with tension compensating mechanism, In order to guarantee high precision of bending

• 1 The new compact adds a state-of-the-art completetouch control solution for synchronized press brakes
• 2 This panel based control, standard capable of controlling up to 4 axes, can be integrated in cabinets asiwell as usedin an optional pendulant arm housing
• 3 Machine adjustment and test bends are reduced to aminimum with a quick and easy program-to-productionwork sequence.

A convex wedge consists of a set of convex oblique wedges with a beveled surface. Each protruding wedge is designed by finite element analysis according to the deflection curve of the slide and worktable.

The CNC controller system calculates the required compensation amount based on the load force. This force causes deflection and deformation of the vertical plates of the slide and table. And automatically control the relative movement of the convex wedge, so as to effectively compensate for the deflection deformation caused by the slider and the table riser, and obtain the ideal bending workpiece.

Lasersafe PSC-OHS safety guard: Communication between CNC controller and safety control module. Dual beam from protection are point below 4mm below the tip of upper tool, to protect operator's fingers; three regions (front, middle and real) of laser can be flexibly closed, ensure complex box bending processing; mute point is 6mm, to realize efficient and safe production.

When mark bending support plate can realize the function of turning over following. Following angle and speed are calculated and controlled by CNC controller, move along linear guide left and right. Adjust the height up and down by hand, front and rear can also be adjust manually to suit for different bottom die opening. Support platform can be brush or stainless steel tube, according to workpiece size, two supports linkage movement or separate movement can be chosen.
