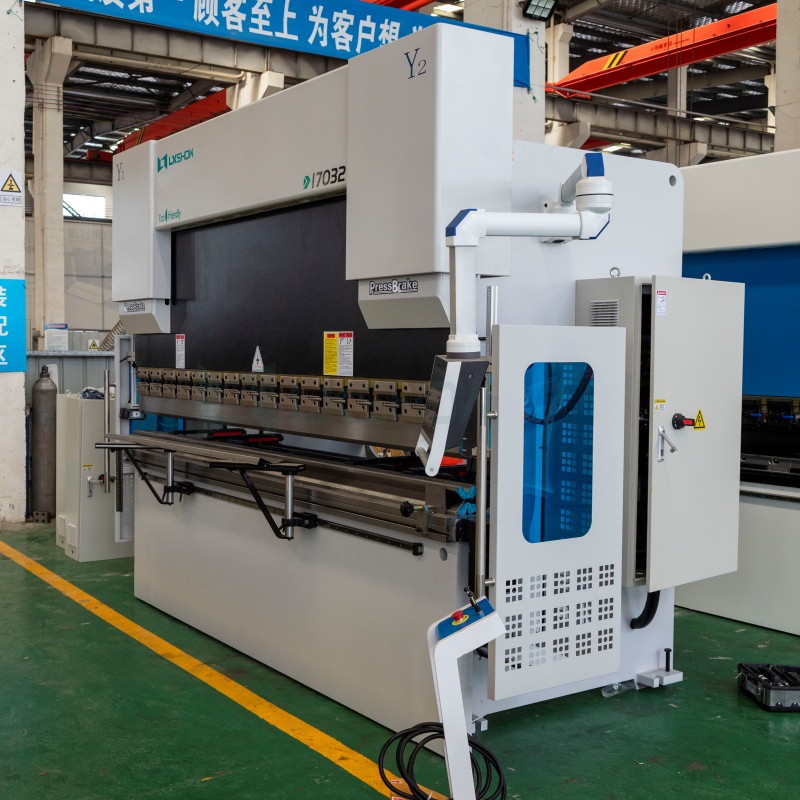

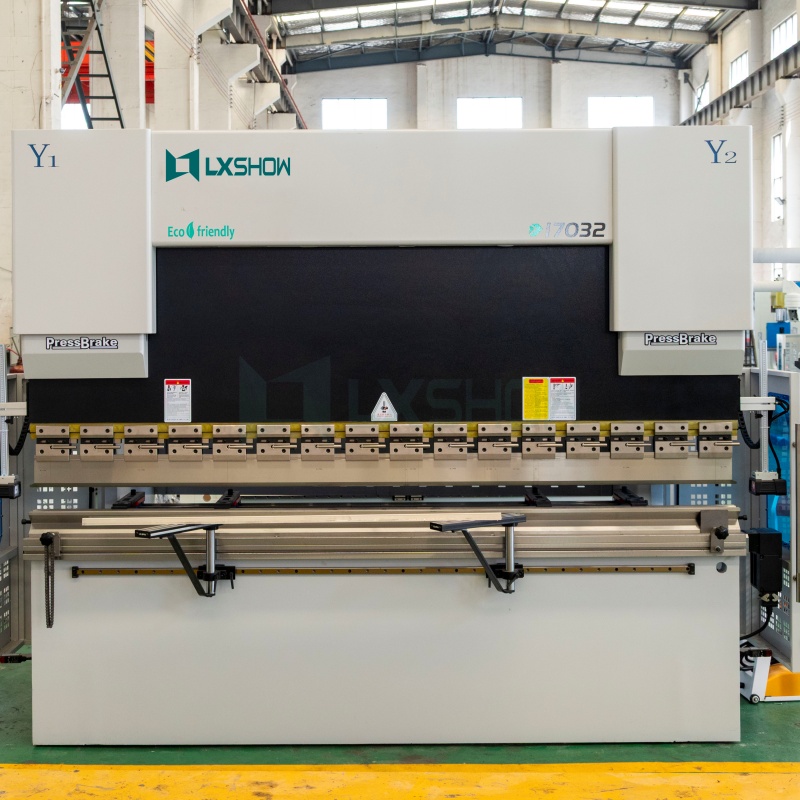

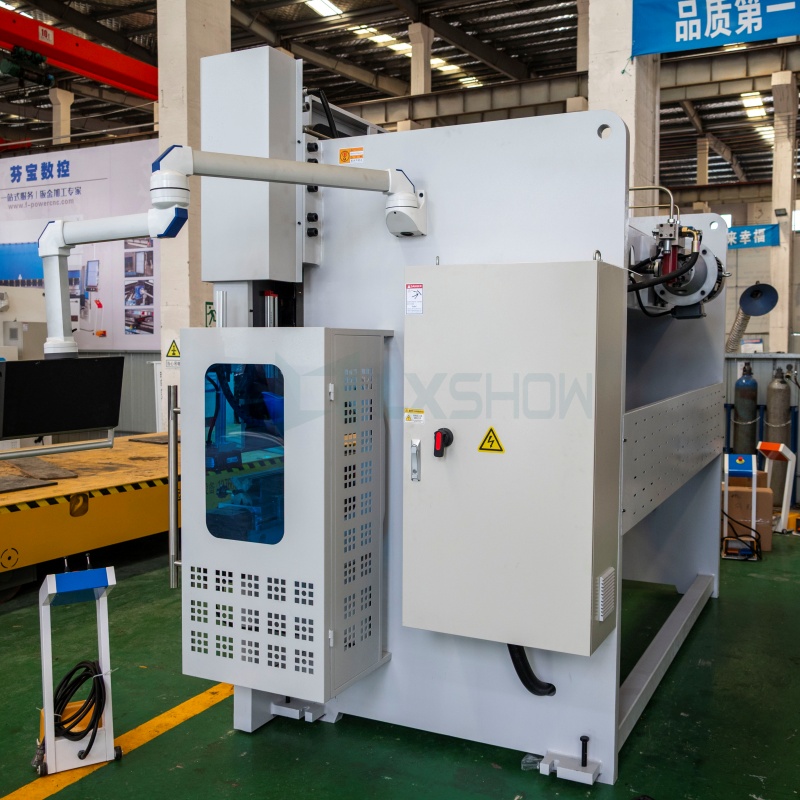

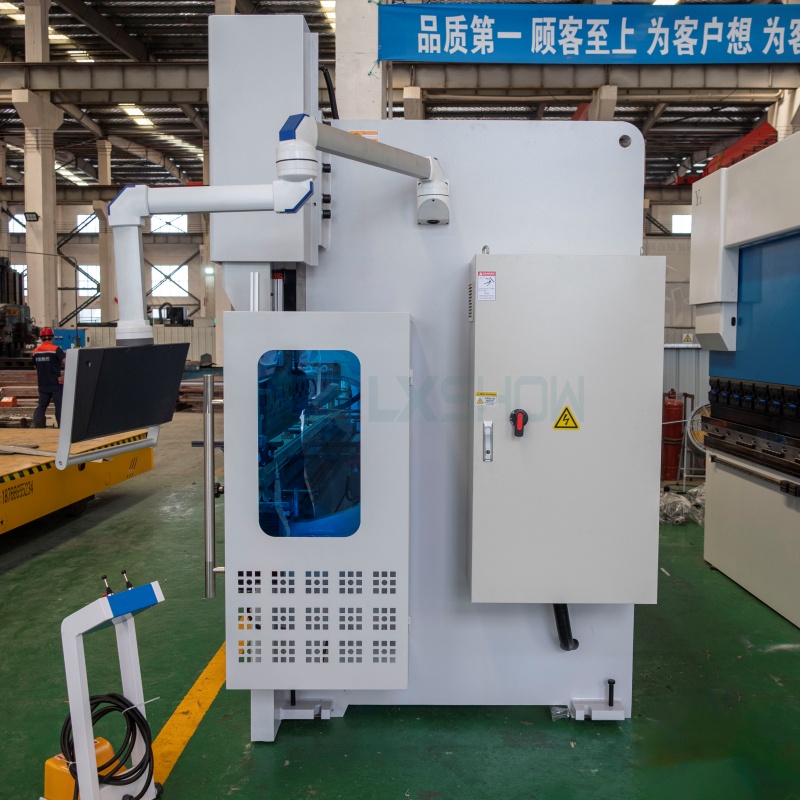

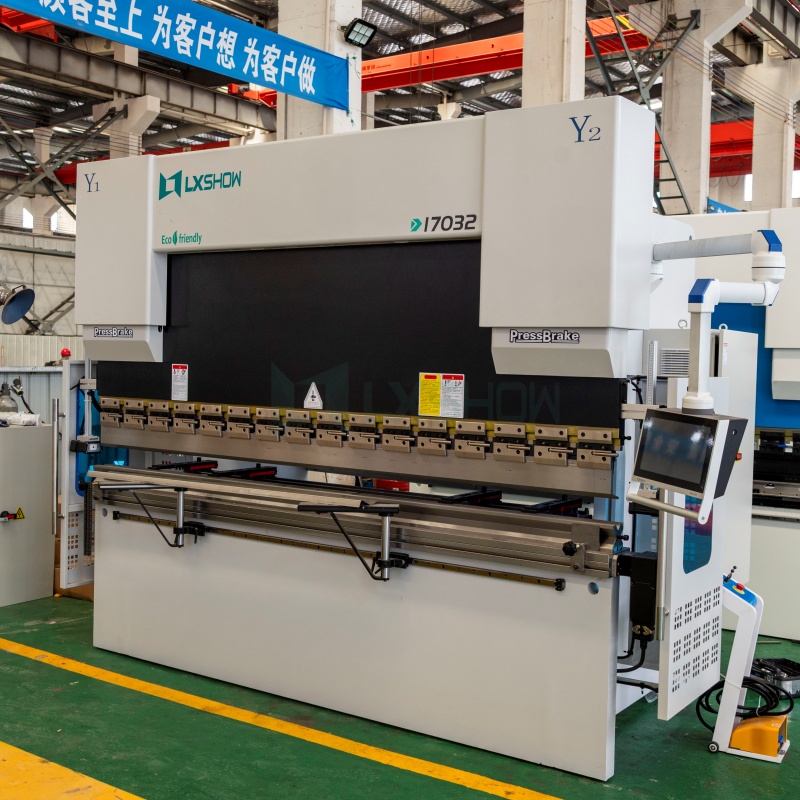

Best WE67K-170T3200 Industrial Hydraulic Mini Sheet Metal Brake Bender for Sale Factories, Exporters

1 / 5

Best WE67K-170T3200 Industrial Hydraulic Mini Sheet Metal Brake Bender for Sale Factories, Exporters

Send Inquiry

Product Description

Rigid Structure & Bending Precision

Complete steel-welded structure, with sufficient strength and rigidity.
Hydraulic down-stroke structure, reliable and smooth.
Mechanical stop unit, synchronous torque, and high precision.
The backgauge adopts the backgauge mechanism of the T-type screw with smooth rod, which is driven by a motor.
Upper tool with tension compensating mechanism, in order to guarantee high precision of bending.

Advanced Control Systems

1 The new compact adds a state-of-the-art complete touch control solution for synchronized press brakes.
2 This panel based control, standard capable of controlling up to 4 axes, can be integrated in cabinets as well as used in an optional pendulant arm housing.
3 Machine adjustment and test bends are reduced to a minimum with a quick and easy program-to-production work sequence.

Tool Clamping System

Upper tool clamping device is fast clamp.

Material Support Platform

Aluminium alloy material platform, attractive appearance, and decrease scratch of workpiece.

High Precision Componentry

Ball screw/liner guide are high precision.
Multi-V bottom die with different openings.

Deflection Compensation & Die Clamping

A convex wedge consists of a set of convex oblique wedges with a beveled surface. Each protruding wedge is designed by finite element analysis according to the deflection curve of the slide and worktable.
The CNC controller system calculates the required compensation amount based on the load force. This force causes deflection and deformation of the vertical plates of the slide and table. And automatically control the relative movement of the convex wedge, so as to effectively compensate for the deflection deformation caused by the slider and the table riser, and obtain the ideal bending workpiece.
Adopt 2-v quick change clamping for bottom die.

Laser Safety & Intelligent Support

Lasersafe PSC-OHS safety guard, communication between CNC controller and safety control module.
Dual beam from protection are point below 4mm below the tip of upper tool, to protect operator's fingers; three regions (front, middle and real) of laser can be flexibly closed, ensure complex box bending processing; mute point is 6mm, to realize efficient and safe production.
When mark bending support plate can realize the function of turning over following. Following angle and speed are calculated and controlled by CNC controller, move along linear guide left and right.
Adjust the height up and down by hand, front and rear can also be adjust manually to suit for different bottom die opening.
Support platform can be brush or stainless steel tube, according to workpiece size, two supports linkage movement or separate movement can be chosen.

Technical Specifications

Parameter Name		Details & Specifications
Machine model		WE67K-170T3200
Nominal Pressure		1700 kN
Bending length		3200 mm
Distance between columns		3200 mm
Throat Depth		320 mm
Opening Height		400 mm
Slide running condition	moving journey/stroke	200mm
	fast down speed	180mm/s
	return speed	110mm/s
	working speed	10mm/s
Slide running precision	Position accuracy	±0.03mm
Slide running precision	Repeat Position accuracy	±0.02mm
Main motor power	Power	11 KW
Main motor power	rotate speed	1440r/min
Operate system	Model	DA53T
Oil Pump	Model	USA sunny
Bending precision	angle	±30'
Bending precision	straightness	±0.7mm/m
Voltage		220/380/420/660V

Product Gallery & Service Showcase

Samples

Packaging

Factory

Our Service

Customer Visit

Off-line Activity

Frequently Asked Questions

Q: Do you have CE document and other documents for customs clearance?

Yes, we have CE and provide you with a one-stop service. Initially, we will show you documents, and after shipment, we will provide you with CE, Packing list, Commercial Invoice, and Sales contract for customs clearance.

Q: If we are interested in your machine, how do we choose?

Please tell us your materials (carbon steel or stainless steel), their thickness, and the maximum bending width. Based on this, we will confirm the most appropriate machine model for you.

Q: How about the warranty?

We offer a 3-year quality guarantee. The machine with main parts (excluding consumables) shall be changed free of charge (with some parts being maintained) if any problem occurs during the warranty period.

Q: Do you have after-sales support?

Yes, we are pleased to offer guidance and have skilled technicians available worldwide to ensure your machines continue running to support your business operations.

Q: Do you have any other machine styles?

Yes, please check our alternative machine styles. If you have any questions, you can contact us at any time, 24/7. We are always here to assist.

Q: What is the voltage compatibility of this machine?

The machine supports multiple voltage operations, including 220V, 380V, 420V, and 660V, to meet different industrial power requirements worldwide.
