| Machine Model | LX3015C-O |
|---|---|
| Power of Generator | 1000-2000W |
| Dimension | 2876*4626*2440mm |
| Working Area | 1500*3000mm (Other size can be customized) |
| Repeated Positioning Accuracy | ±0.02mm |
| Max Running Speed | 120m/min |
| Max Acceleration | 1.5G |
| Specified Voltage And Frequency | 380V 50/60HZ |

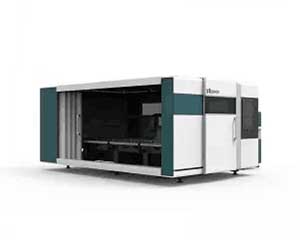

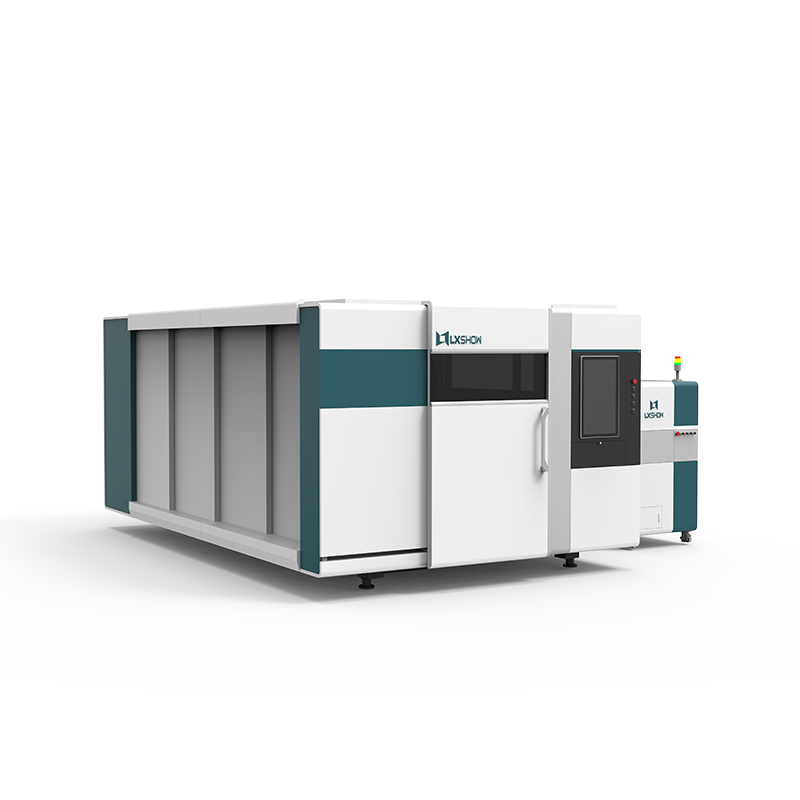

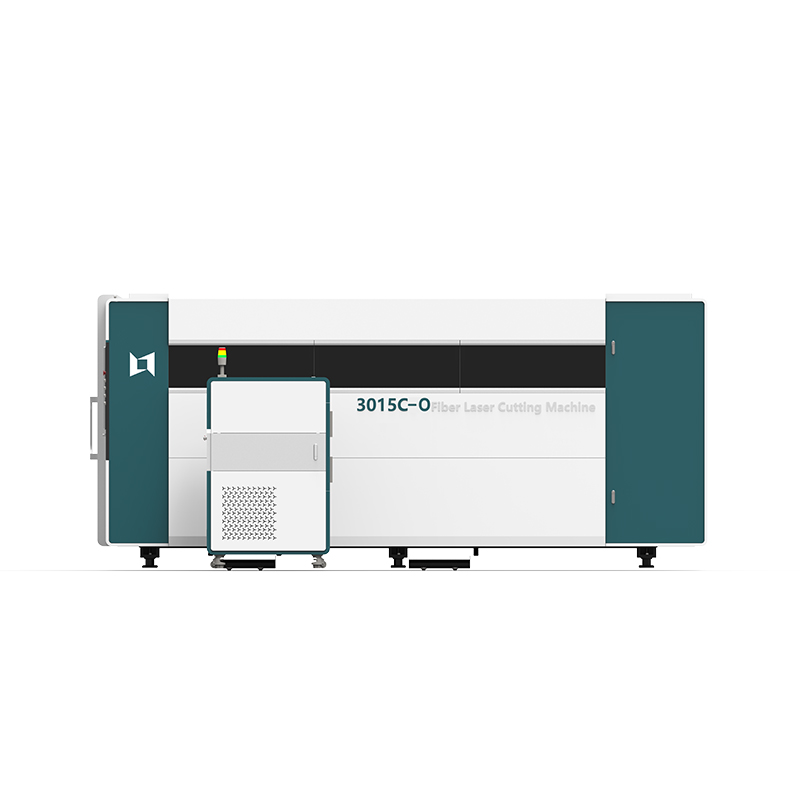

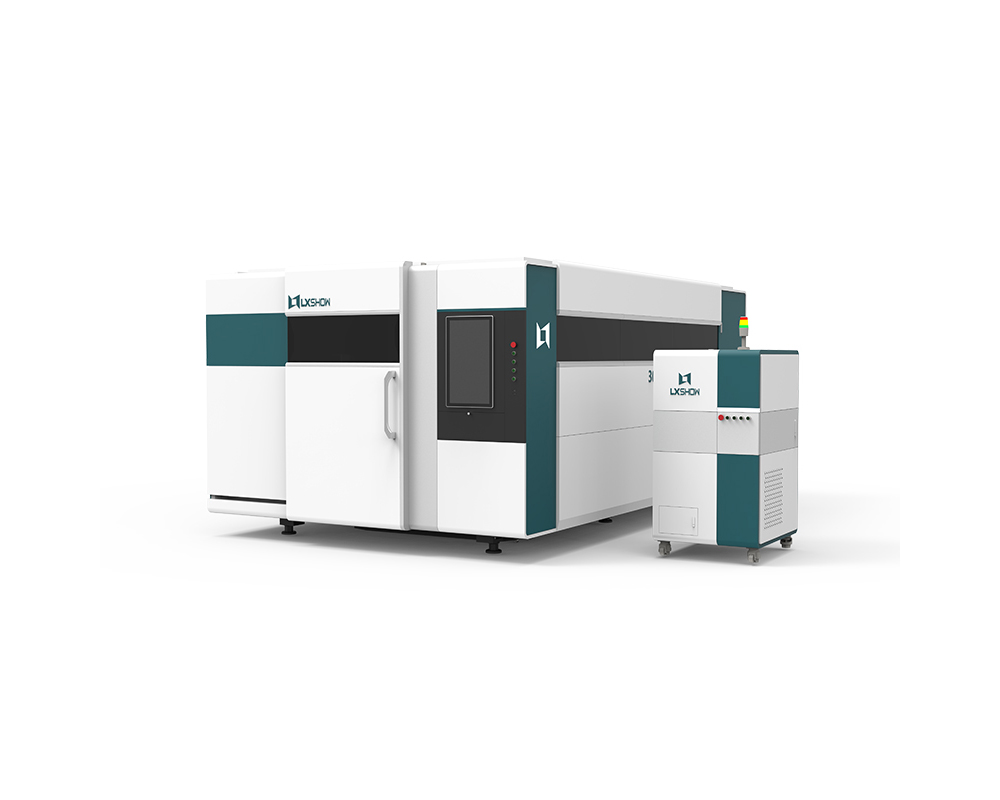

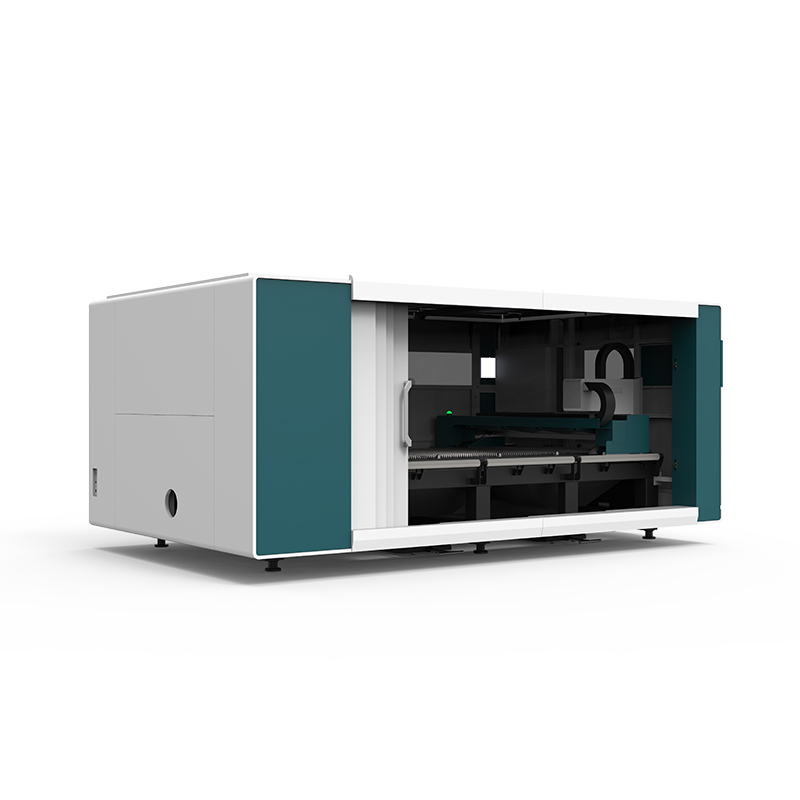

With a fully enclosed design, this system prioritizes safety and environmental protection.
The generator's using life (theoretical value) is 100,000 hours. This means that if you use it for 8 hours a day, it can be used for about 33 years.

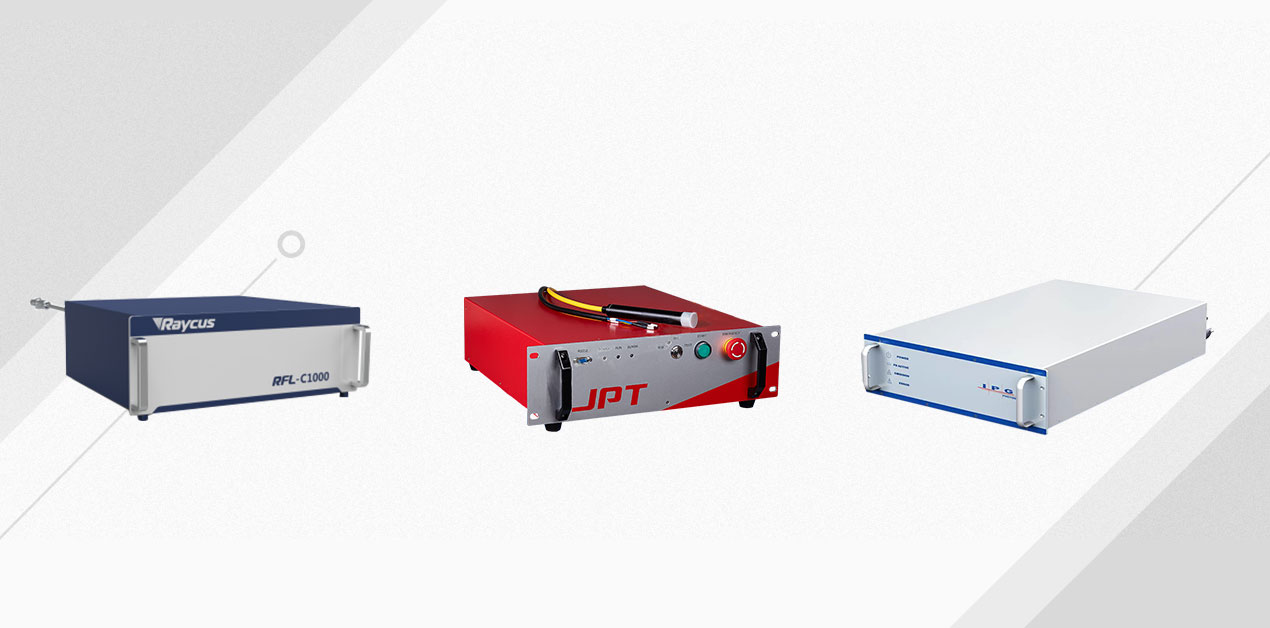

Generator Brand Options: JPT / Raycus / IPG / MAX / Nlight

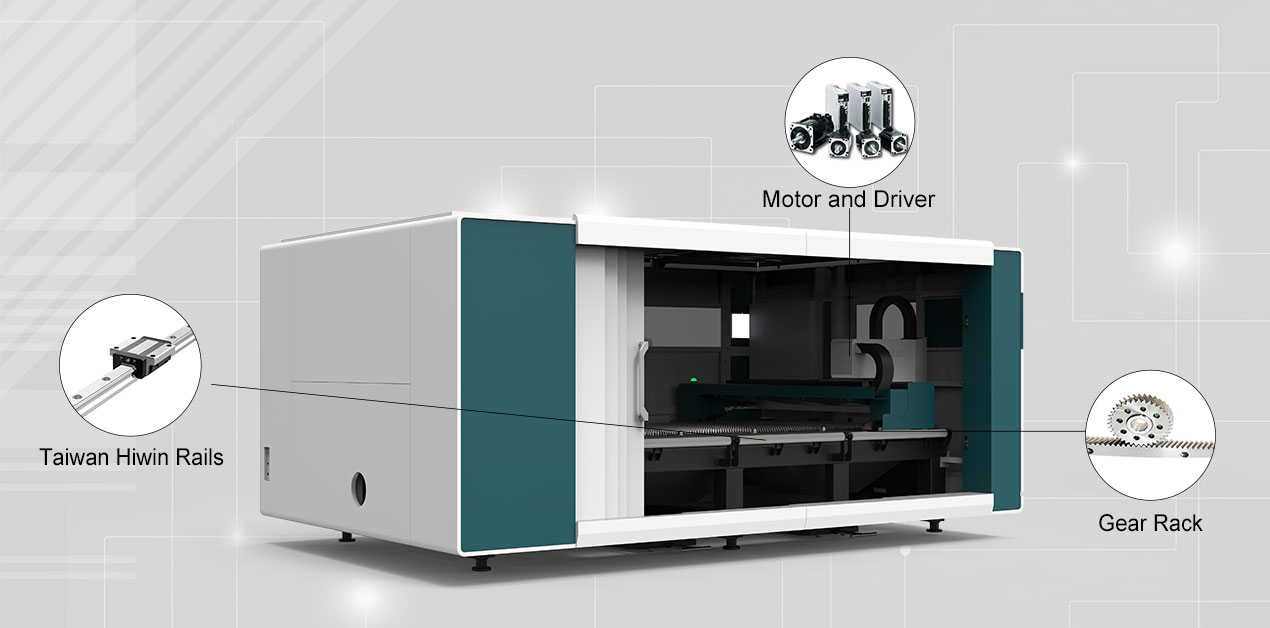

The fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

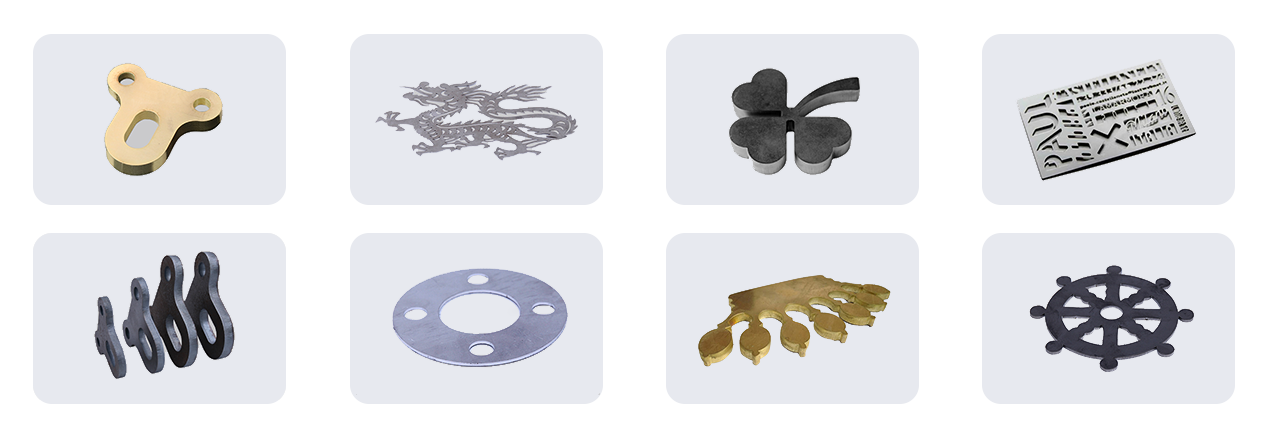

Suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.
Widely used in manufacture of Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

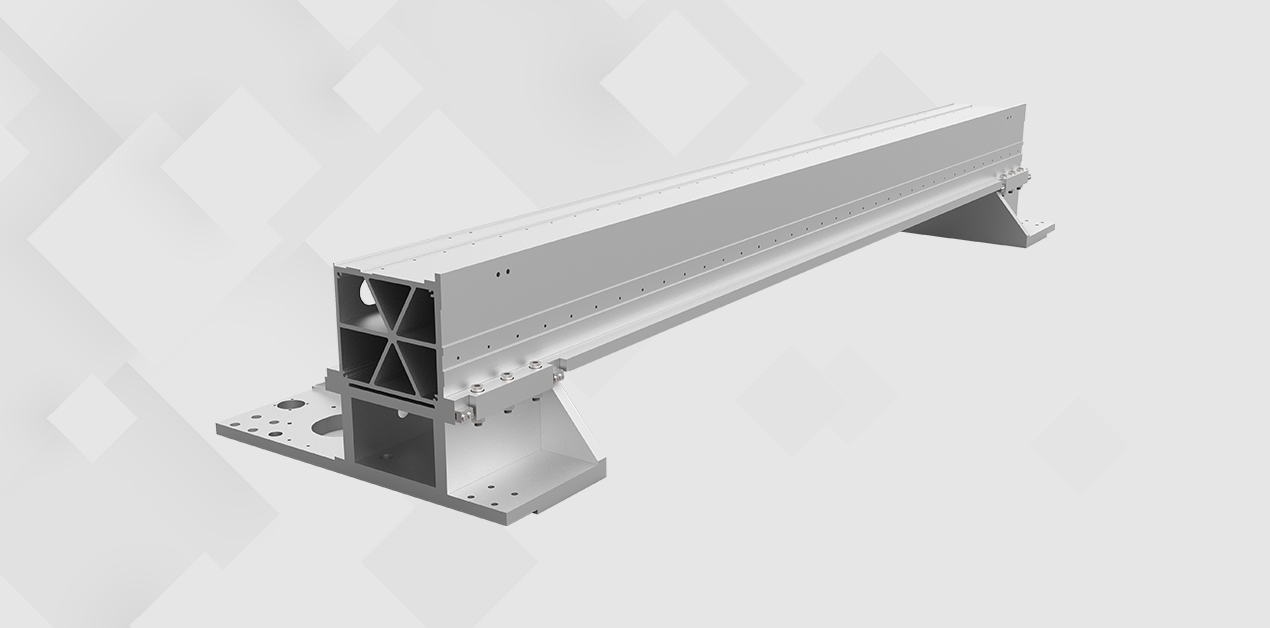

The gantry is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increases the processing speed.

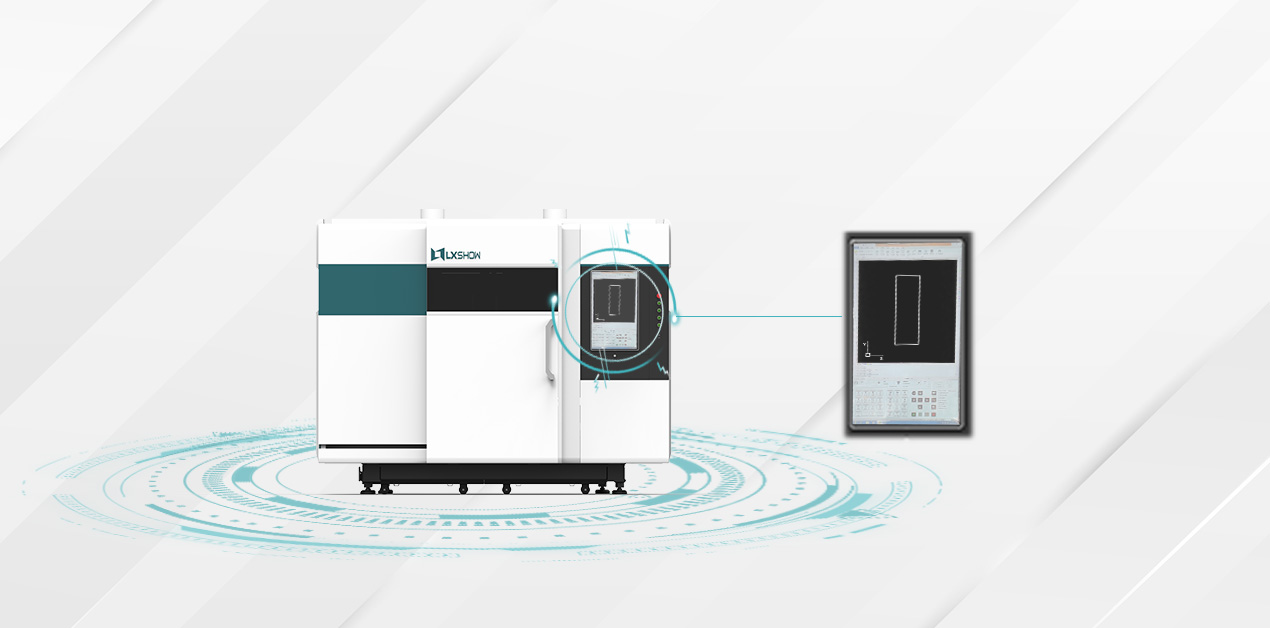

Real-time observe the machine running through the panel.

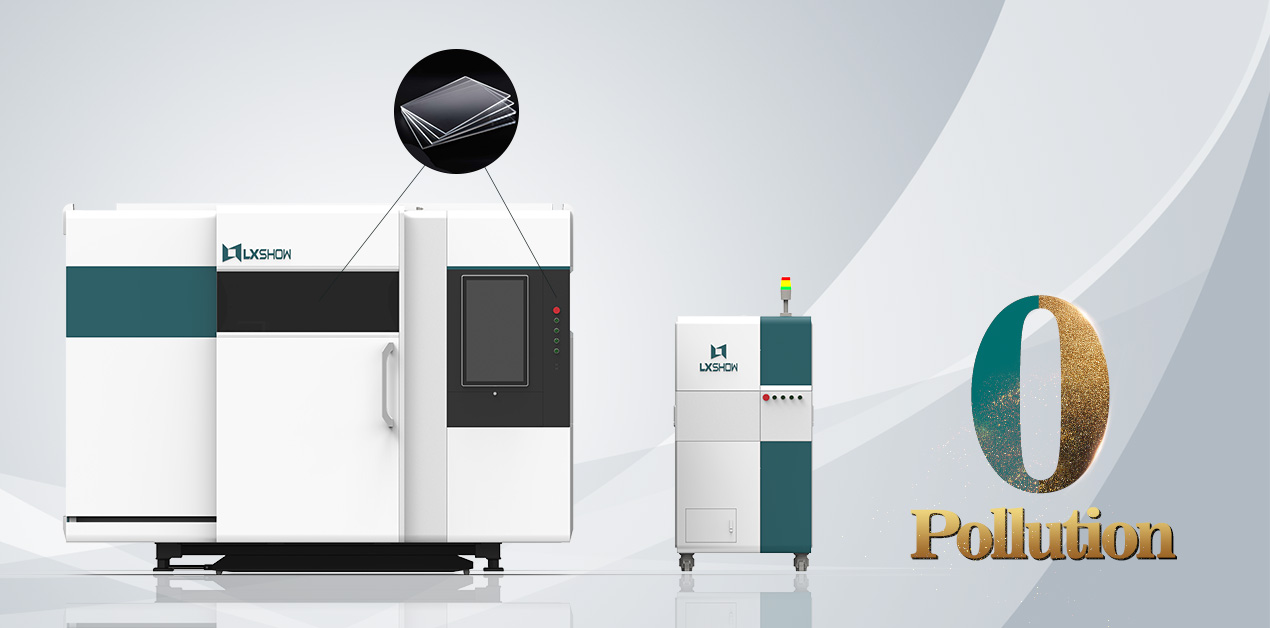

The observation window adopts an European CE Standard laser protective glass.
The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly.

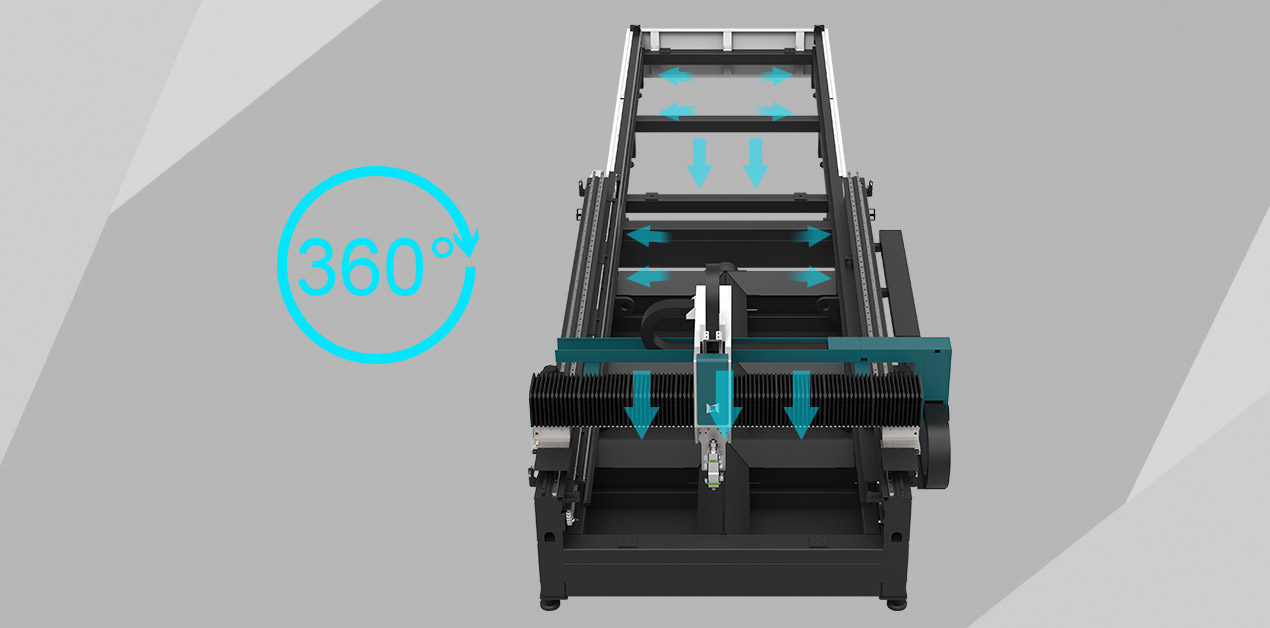

The Segmented Rectangle Laser Tube Welded Bed: The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.
