📊 Technical Parameters
| Model |
LXW-1000/1500W |
| Laser power |
1000/1500W |
| Center wavelength |
1070+-5nm |
| Laser frequency |
50Hz-5KHz |
| Work patterns |
Continuous |
| Electricity demand |
AC220V |
| Output fiber length |
5/10/15m (Optional) |
| Cooling method |
Water Cooling |
| Dimensions |
1150*760*1370mm |
| Weight |
275kg(About) |
| Cooling water temperature |
5-45℃ |
| Average consumed power |
2500/2800/3500/4000W |
| Laser Energy Stability |
<2% |
| Air humidity |
10-90% |
💡
Laser welding machine is suitable for welding of stainless steel, iron, carbon steel, galvanized sheet, aluminum and other metal and its alloy material, can achieve the same precision welding between metal and dissimilar metals, has been widely used in aerospace equipment, shipbuilding, instrumentation, mechanical and electrical products, automotive and other industries.
⚙️ Product Features & Details

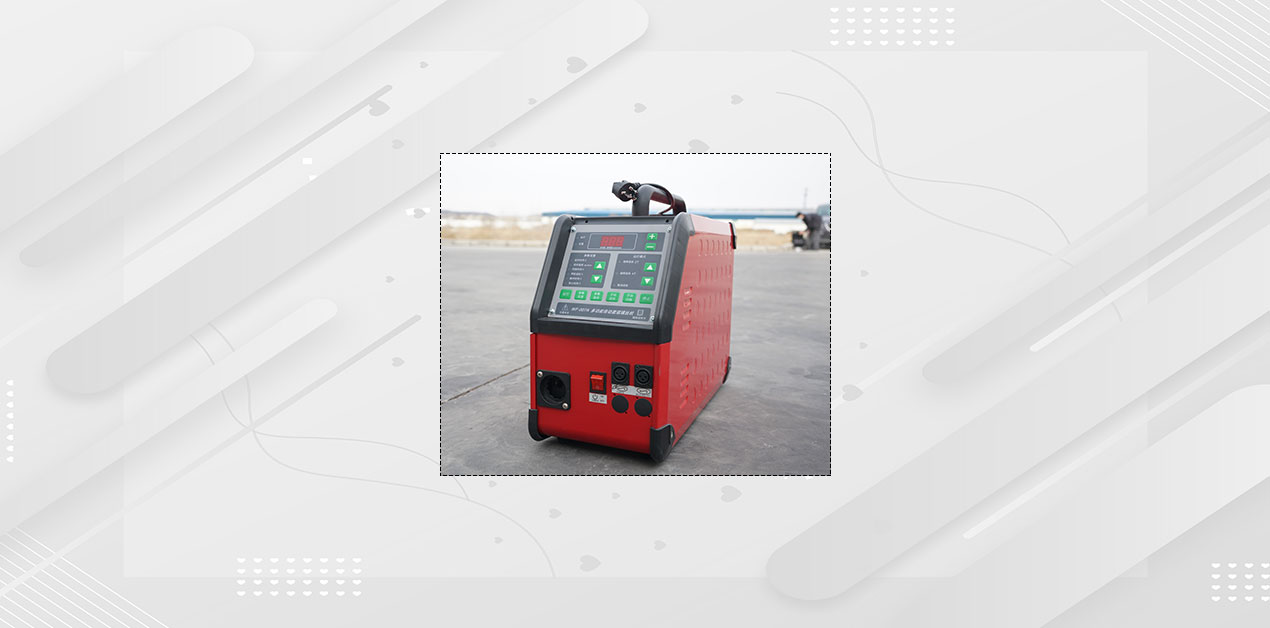

The system adopts microcomputer control, step reduction motor drive, high wire feeding precision and good repeatability.

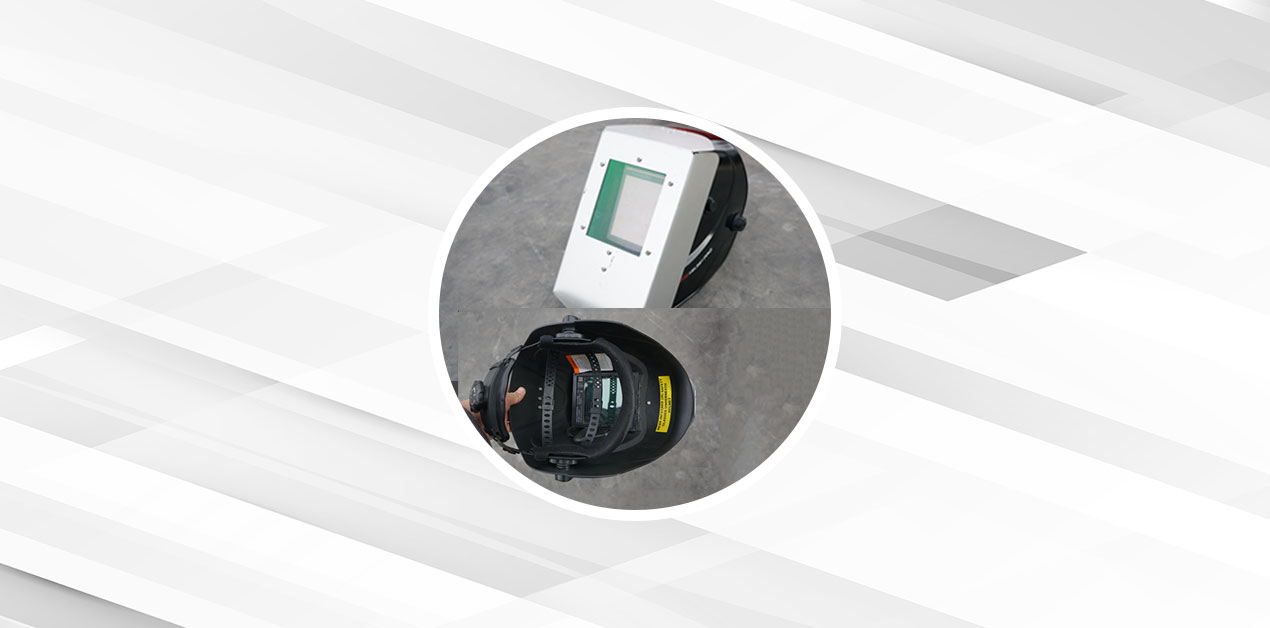

Better protect your operation safety and protect your eyes.

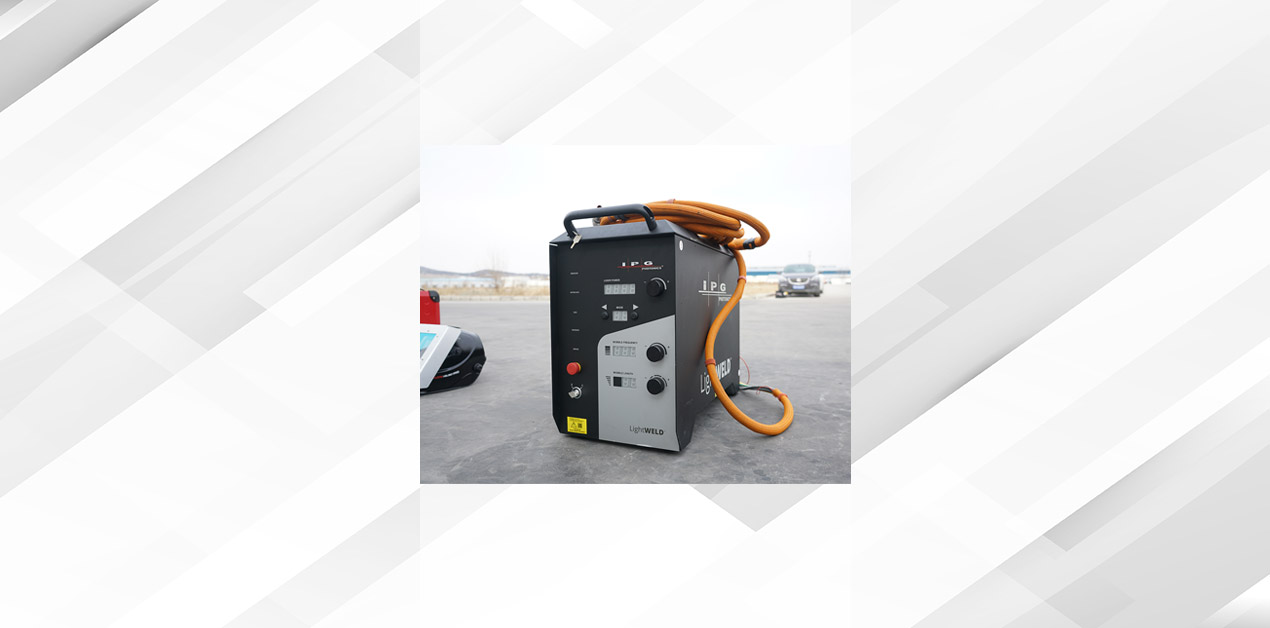

Laser power up to 1500 W is easily adjusted with intuitive controls to quickly dial in optimum weld settings for various materials and thicknesses. With 74 stored preset and user defined process parameters, novice welders can be trained and welding in a matter of hours. Select stored modes provide up to 2500 W of high peak power for even greater welding capability.

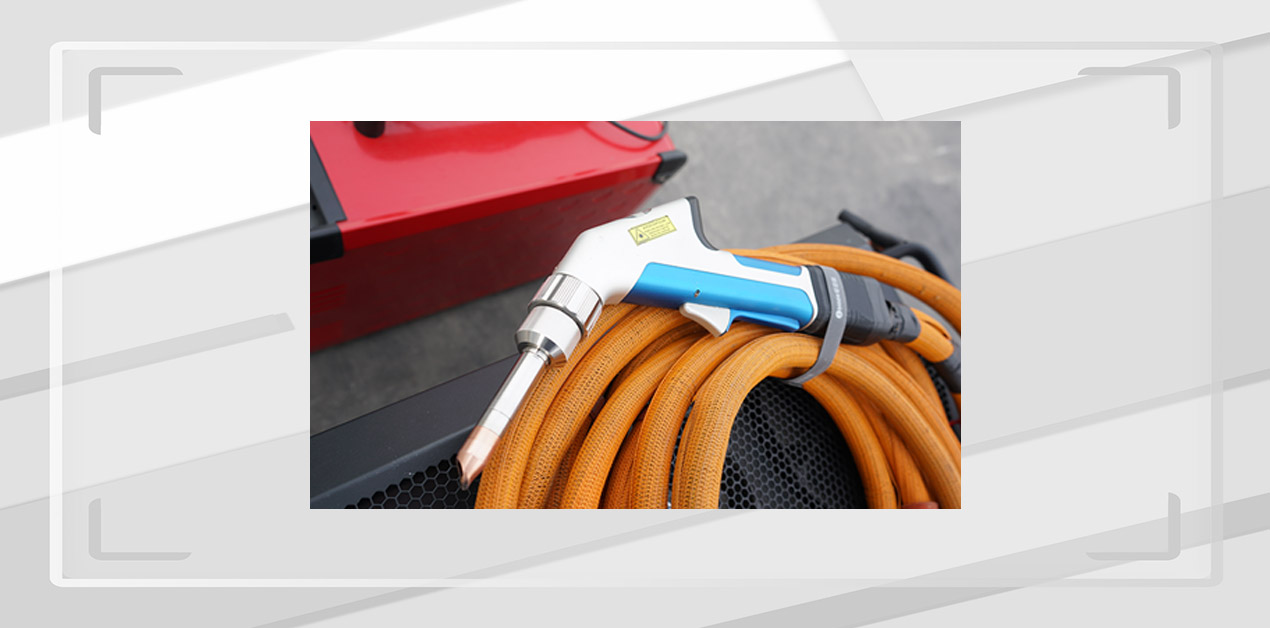

The handheld welding gun is compact, ergonomic and proven to be the most comfortable, well balanced and easy to use gun available. The light weight and built-in wobble functionality enables operators to produce high-quality welds consistently throughout the day and safely with its 2-step trigger.
📦 Specifications & Shipping
🔍
Model Number
LXW-1000/1500W
⏱️
Lead Time
5-10 working days
💳
Payment Term
T/T; Alibaba trade assurance; West Union; Paypal; L/C
📏
Machine Size
1150*760*1370mm
🚢
Shipping
By sea / By air / By Railway
❓ Frequently Asked Questions (FAQ)
Q1: Which metal materials can this machine weld?
A1: This laser welding machine is suitable for welding stainless steel, iron, carbon steel, galvanized sheet, aluminum, and other metal and alloy materials. It can perform precision welding between both similar and dissimilar metals.
Q2: How easy is it for beginners to operate?
A2: It is very user-friendly. With intuitive controls and 74 stored preset and user-defined process parameters, novice welders can be trained and start welding in a matter of hours.
Q3: What are the main features of the wire feeding system?
A3: The system utilizes microcomputer control and a step reduction motor drive, which ensures high wire feeding precision and excellent repeatability.
Q4: Is the handheld welding gun comfortable to use for long periods?
A4: Yes, the handheld welding gun is compact, ergonomic, lightweight, and well-balanced. It is designed to be comfortable and easy to use throughout the day, and features a built-in wobble functionality.
Q5: What safety features does this machine offer?
A5: The machine provides enhanced protection for operation safety and eye safety. Additionally, the handheld welding gun is equipped with a 2-step trigger for safe operation.
Q6: What are the shipping methods and warranty details?
A6: We offer shipping by sea, by air, and by railway. The machine comes with a 2-year warranty and a lead time of 5-10 working days.
