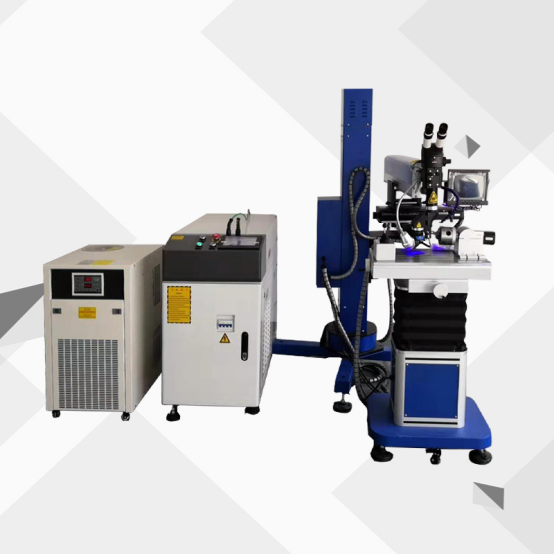

OEM 200W 300W 400W 500W YAG Laser Welding Machine for Die&Mould Manufacturer, Factory

1 / 1

OEM 200W 300W 400W 500W YAG Laser Welding Machine for Die&Mould Manufacturer, Factory

Send Inquiry

Product Description

Technical Parameter

Parameter Description	Value / Specification
Maximum Laser Output Power	200W
Wavelength	1064nm
Max Pulse	80J
Pulse Width	0.1-20ms
Frequency Range	0.1-100HZ
Beam-divergence Angle	<=5mard
Degree of Laser Power Instability	<=±2%
Beam Diameter	0.5-3mm
Control System	PLC
Welding Area	450*300mm
Continuous Working Time	16h >=
Cooling System	Water cooling
Voltage	AC380V/50HZ/60HZ±10%
Packing size	3CBM
Machine weight	260KG
Packing weight	312KG

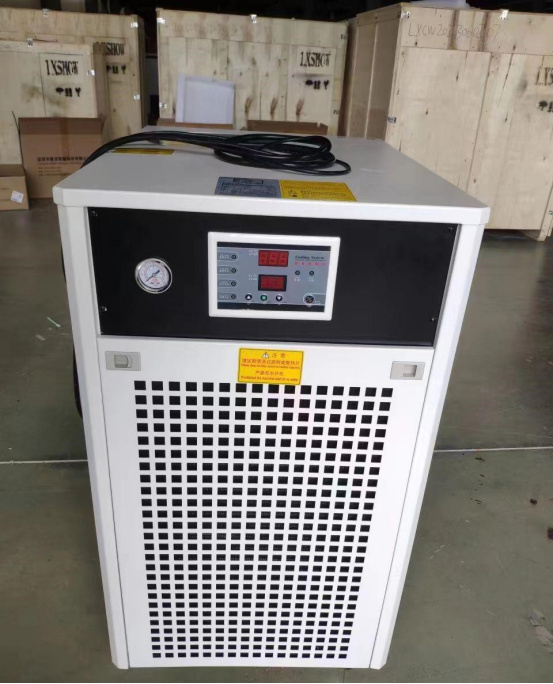

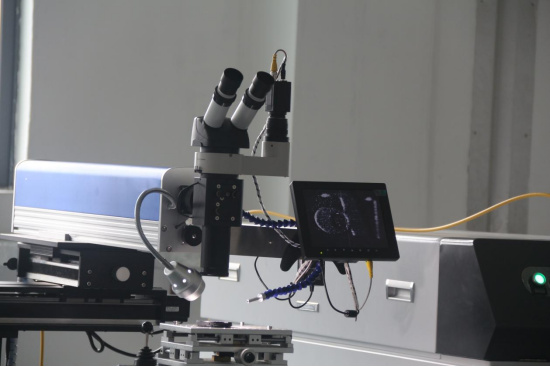

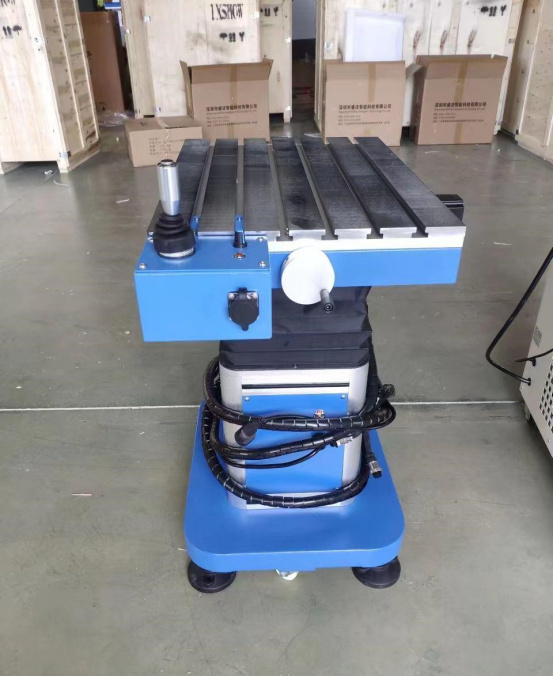

Main Configurations

Frequently Asked Questions (FAQ)

What is the maximum output power and wavelength of this laser system?

This system features a maximum laser output power of 200W operating at a wavelength of 1064nm, providing high precision and stability for various industrial demands.

How is the equipment cooled and how long can it run continuously?

The system uses a highly reliable water cooling design which ensures safe, continuous operation for at least 16 hours or more.

What is the standard welding area size and control method?

The system offers a working welding area of 450*300mm and is managed precisely through a robust PLC control system.

What are the input voltage requirements for this machine?

The machine requires a standard input voltage configuration of AC380V / 50HZ / 60HZ with an allowable variation range of ±10%.

What is the net weight and packing volume of the equipment?

The machine has a net weight of 260KG, a total packing weight of 312KG, and the overall shipping volume is approximately 3CBM.

What are the specifications of the laser beam and pulse limits?

It features a beam diameter range of 0.5-3mm with a divergence angle of <=5mard. The maximum pulse capability is 80J, with pulse widths adjustable from 0.1 to 20ms and frequency ranges of 0.1-100HZ.
