| MACHINE MODEL | QUANTITY (SET) | PRICE (USD) | Warranty |
|---|---|---|---|
| LXW Reci : FOB QINGDAO |
1 | ****** | 2 years |
| Machine body | New design CE standard Heavy duty machine frame | ||

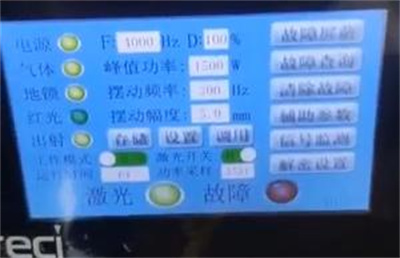

| Controller | Reci controller, LED touch panel, Mother language customized, Reci laser gun | ||

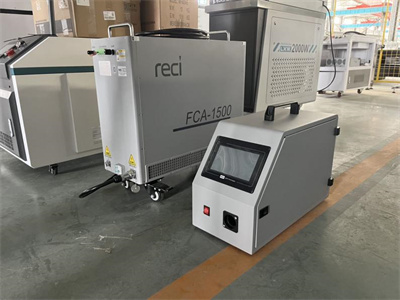

| Laser system | Fiber laser source Reci 1500W | ||
| Cooling system | Air cooling system | ||
| Other important parts | France Schneider Electric Device, Wire feeder, Output cable length: 10m | ||
| Consumable parts | 10x Protective lens, 10x Welding nozzles | ||
| Service | Manual + Video, 2-year warranty, Oversea service, 24 hours online service | ||
| Dimension (L*W*H)mm | 800x750x900mm | N.W/Kg | 65KG |
| CBM(m3)/set | 1CBM | G.W(kg) | 75KG |
| Packing | Plywood package | Delivery time | 5-10 work days |
| Payment | Alibaba Trade Assurance, T/T, Western Union, L/C | ||
| Model | LXW |
|---|---|
| Laser source | Reci |
| Working life of fiber module | More than 100,000 hours |
| Laser machine controller | Reci |

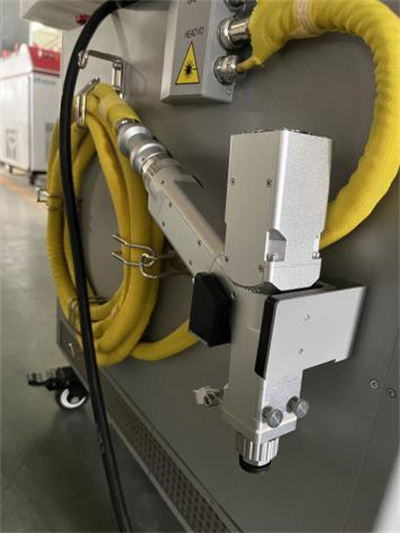

| Wobble welding head | Single wobble |
| Supply voltage | Single-phase 220V±10%, 50/60Hz AC |
| Machine power consumption | 11.5Kw (including chiller) |
| Setting up the environment | Flat, no vibration, no impact |
| Working temperature | 0°C～40°C |
| Working environment humidity | ≤80% |
| Power adjustment range (%) | 10-100 (gradient adjustable) |
| Laser Source Repeat frequency (KHz) | 1000-5000 (gradient adjustable) |
| Beam quality | 1.3m² |
| Laser wavelength | 1070nm |
| Focal length (mm) | 150 |
| Cooling method | Air cooling |
| Size | 800x750x900mm |
| Weight | 65kg |
| Fiber length | 10 meters |
| Welding head weight | 1.5Kg |
| Scanning/Swing frequency | 20-150Hz |
| Mobile mode | Handheld |
| Auxiliary gas | 99.99% argon or nitrogen |
| Auto wire feeder | Included |
| Spot adjusting range | 0-5mm |
| Repeating Precision | 0.01mm |
Application Scope: This machine is suitable for welding of gold, silver, titanium, nickel, tin, copper, aluminum and other metal and its alloy material. It can achieve the same precision welding between metal and dissimilar metals, widely used in aerospace equipment, shipbuilding, instrumentation, mechanical and electrical products, automotive and other industries.

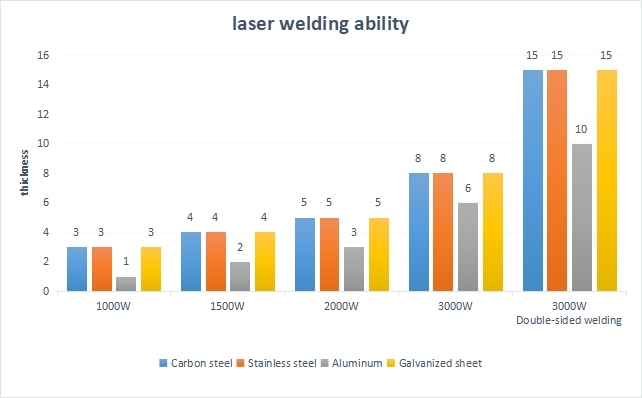

Welding Recommendations: Single-wire welding is recommended for materials less than 2mm thick. If the weld seam is wider than 2mm and the welding height is better, double-wire welding is recommended. 3000W power double-wire is recommended for ≥5mm thickness.
What metals can be welded with this handheld laser welder?
This machine is suitable for welding a wide range of metals, including gold, silver, titanium, nickel, tin, copper, aluminum, and their alloys. It can successfully perform precise welding between identical metals as well as dissimilar metal combinations.
When should I use single-wire vs. double-wire welding?
Single-wire welding is best suited for materials under 2mm in thickness. For weld gaps wider than 2mm, or when a larger welding height/reinforcement is needed, double-wire welding is recommended. For materials with a thickness of 5mm or more, a 3000W double-wire setup is recommended.
What is the warranty period and coverage?
The machine includes a 2-year warranty (excluding consumable parts like protective lenses and welding nozzles). Additionally, lifetime maintenance is provided free of charge.
What consumable parts are needed, and are they easy to replace?
The primary consumables are protective lenses and welding nozzles. The package comes with 10x protective lenses and 10x welding nozzles. These components are designed for easy, tool-free replacement to maintain optimal efficiency.

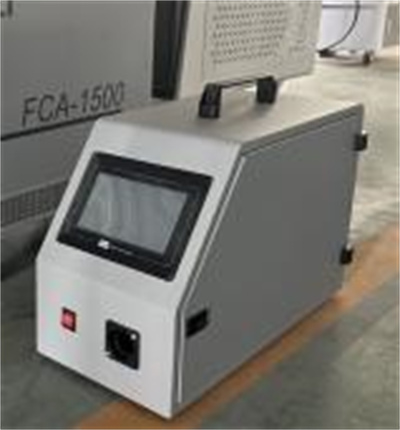

How is the machine cooled, and what are the benefits?
This model uses an integrated air cooling system. Air cooling reduces the complexity of maintenance, avoids water freezing issues, and makes the system lighter and more compact compared to water-chilled options.
